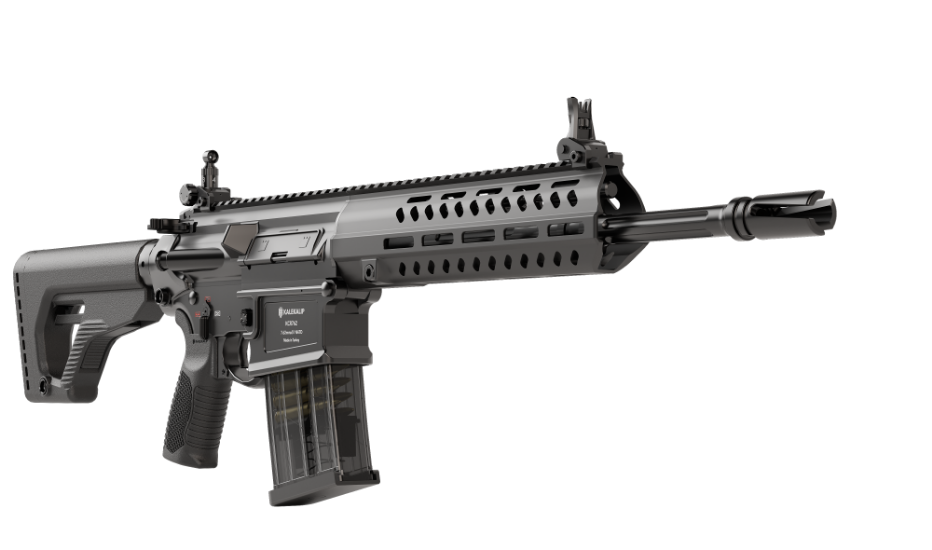

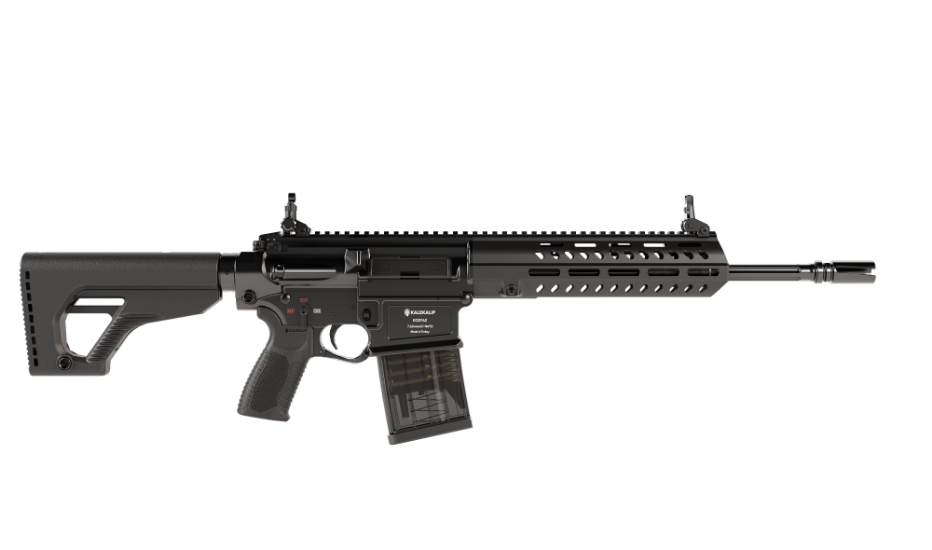

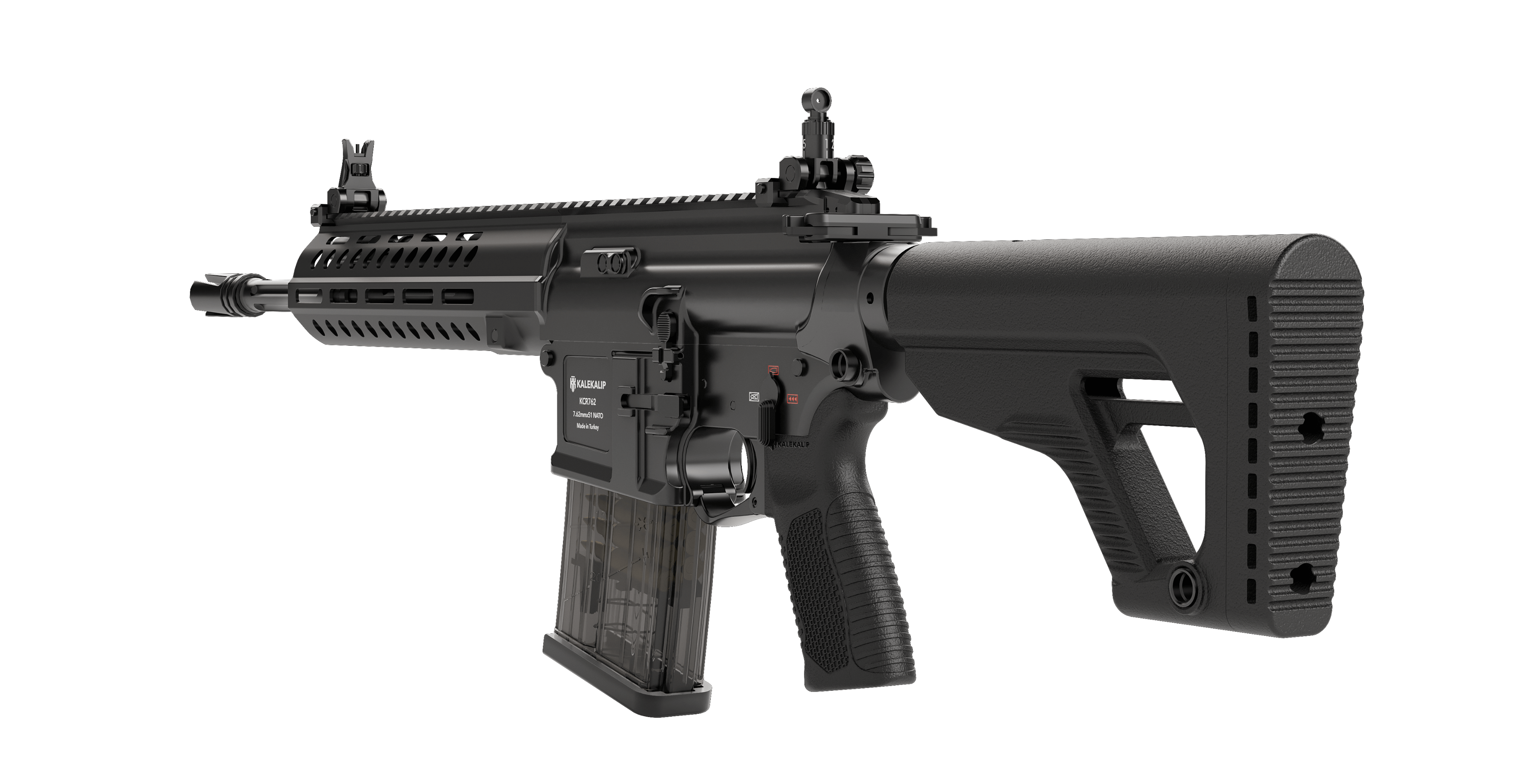

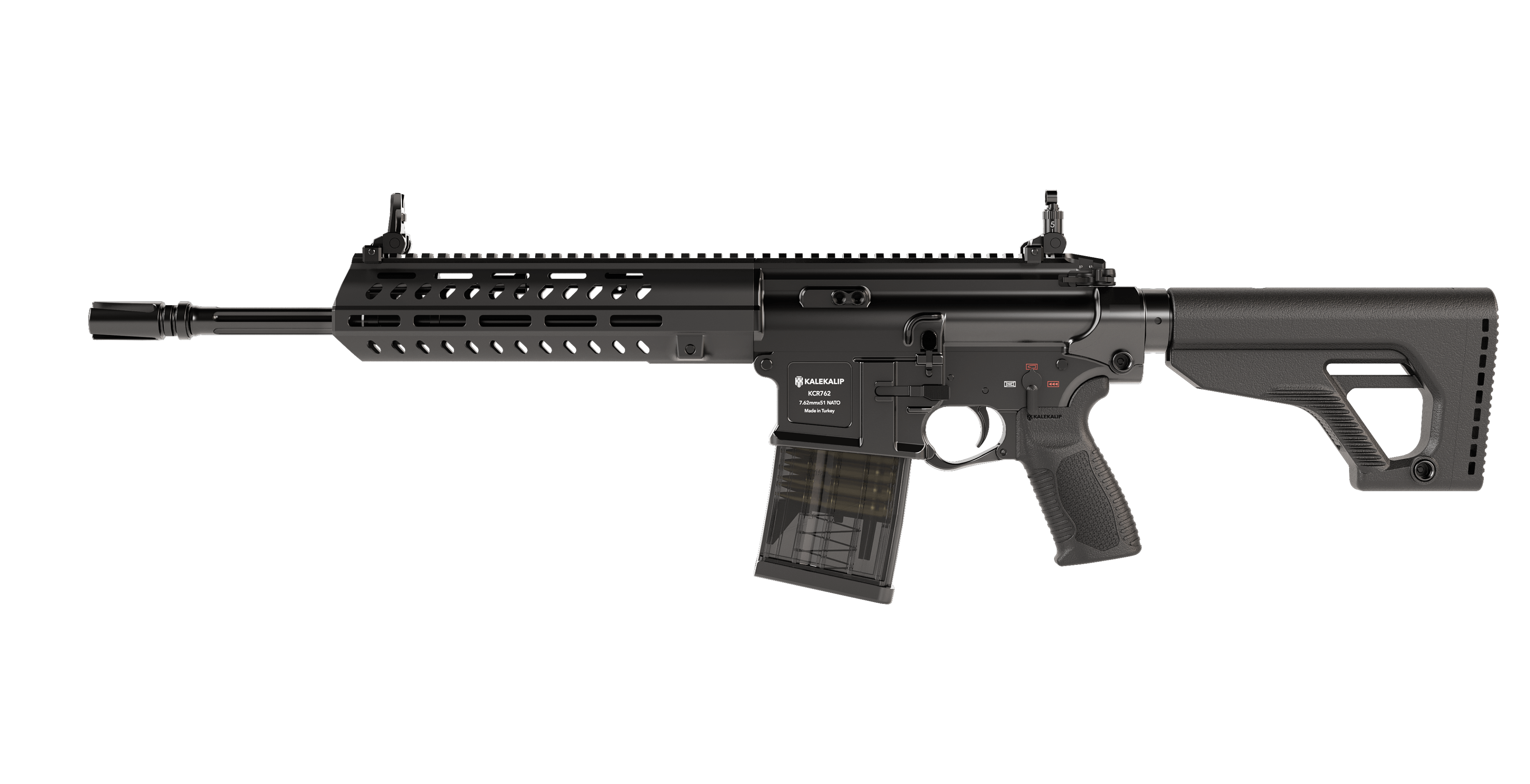

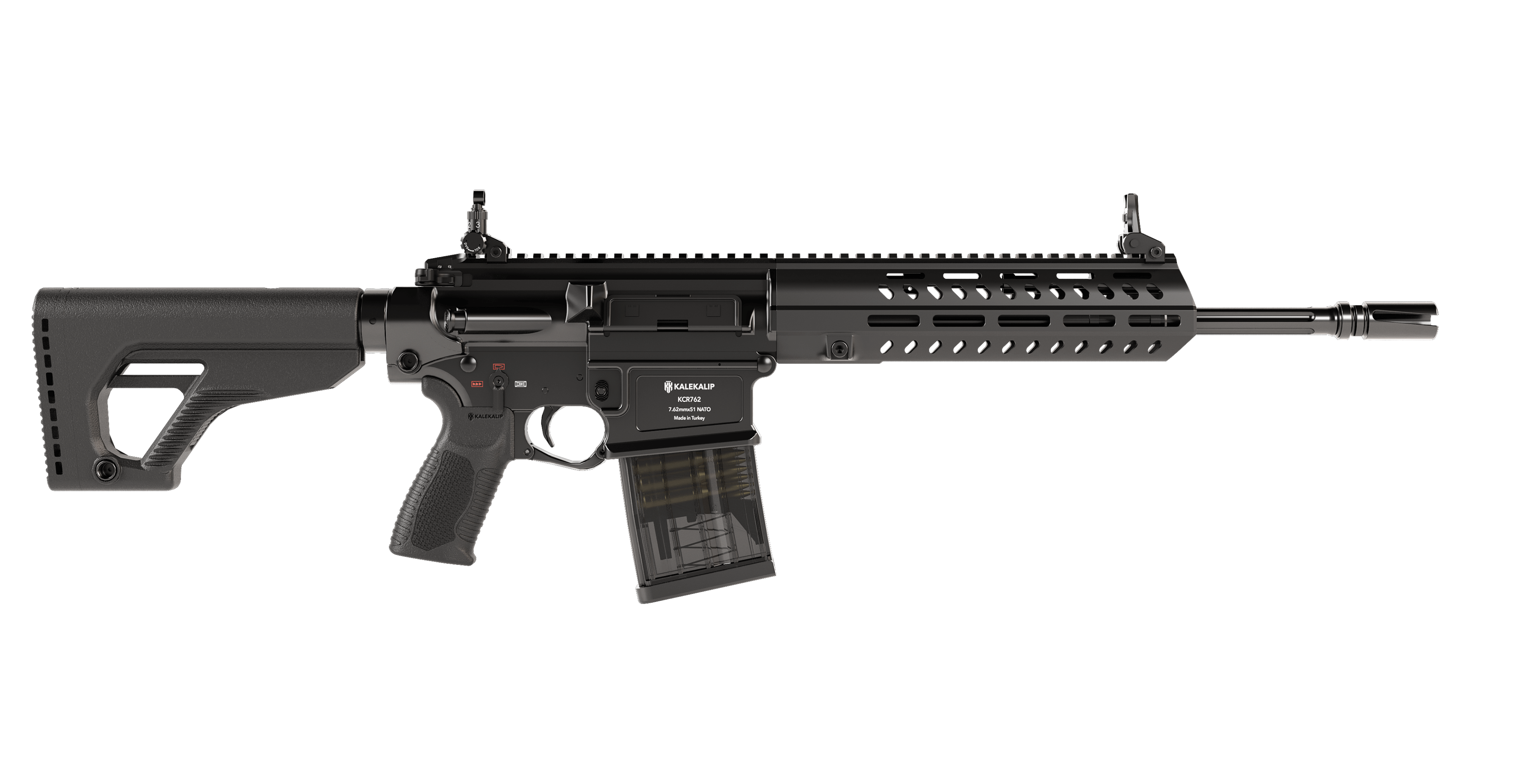

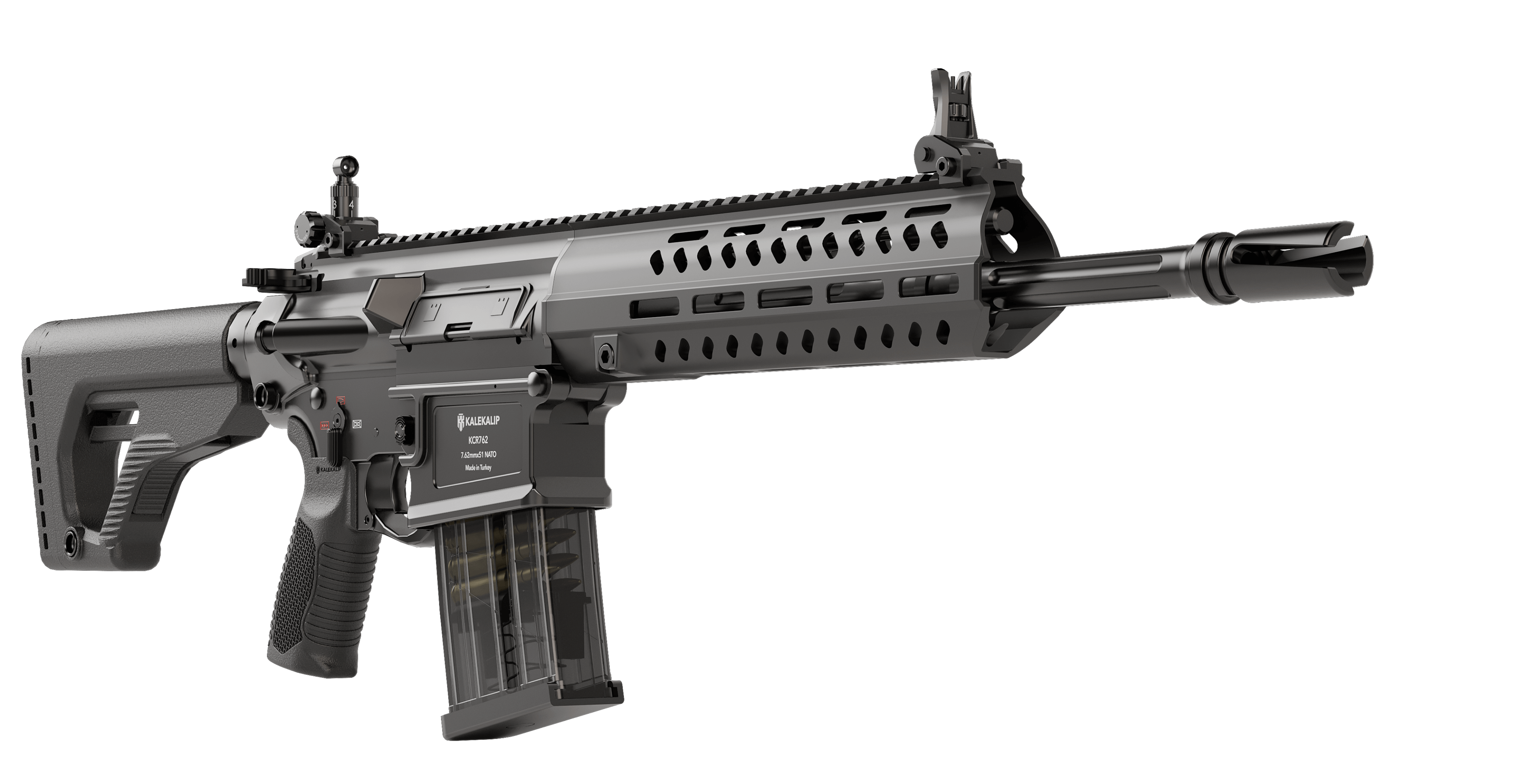

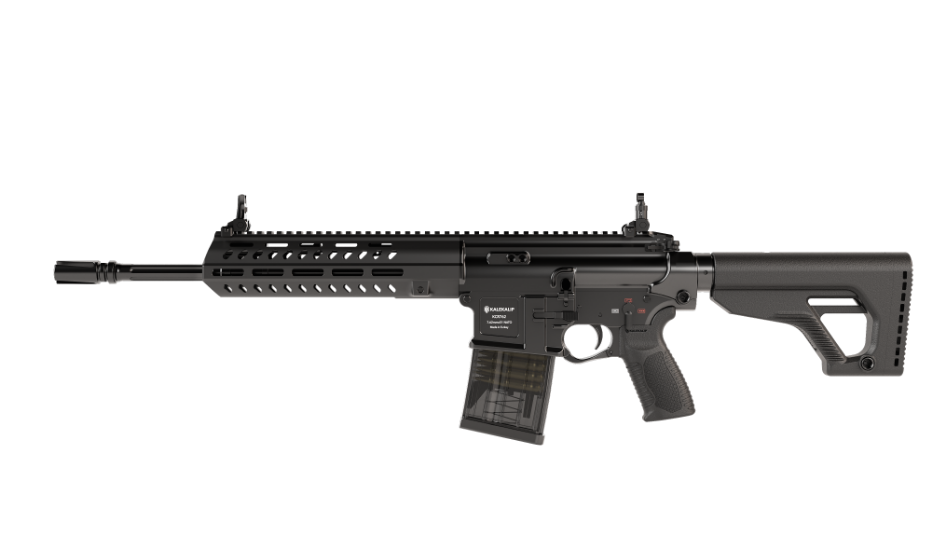

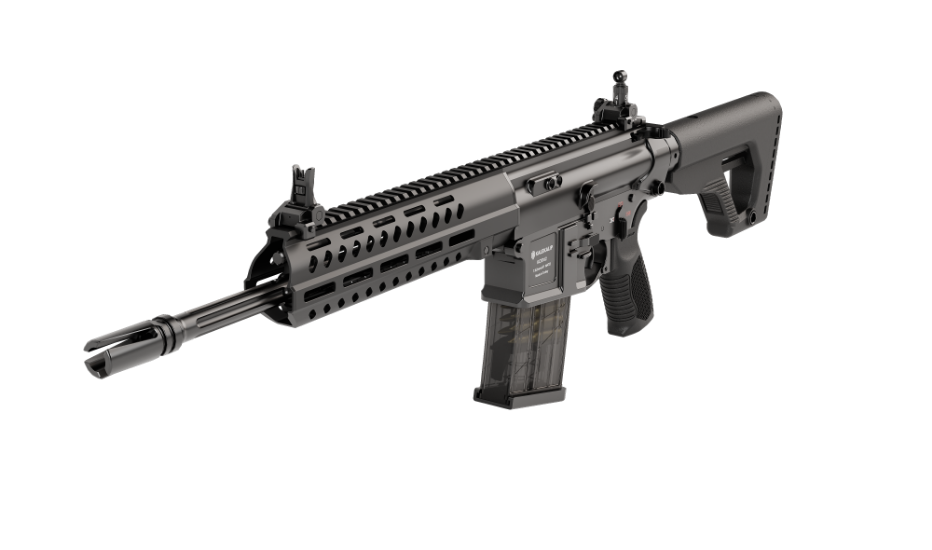

14,5” Carbine

14,5” Carbine
Aluminum Upper&Lower Receiver
MIL Spec / Aerospace Grade Al-7075 (7050) Forged Receivers and Handguard

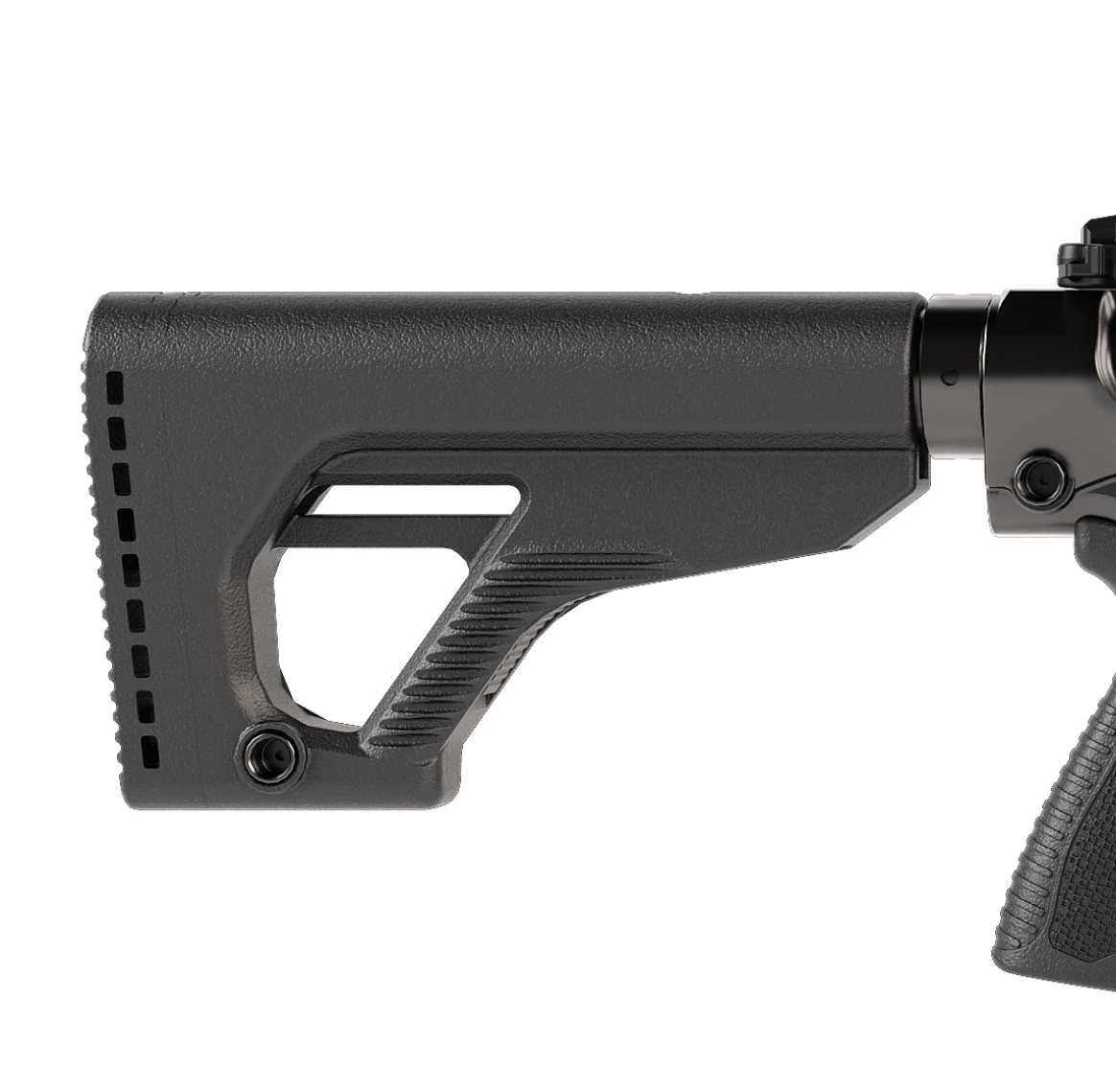

5 Position Telescopic Adjustable Stock
Modular Flip - up Iron Sights

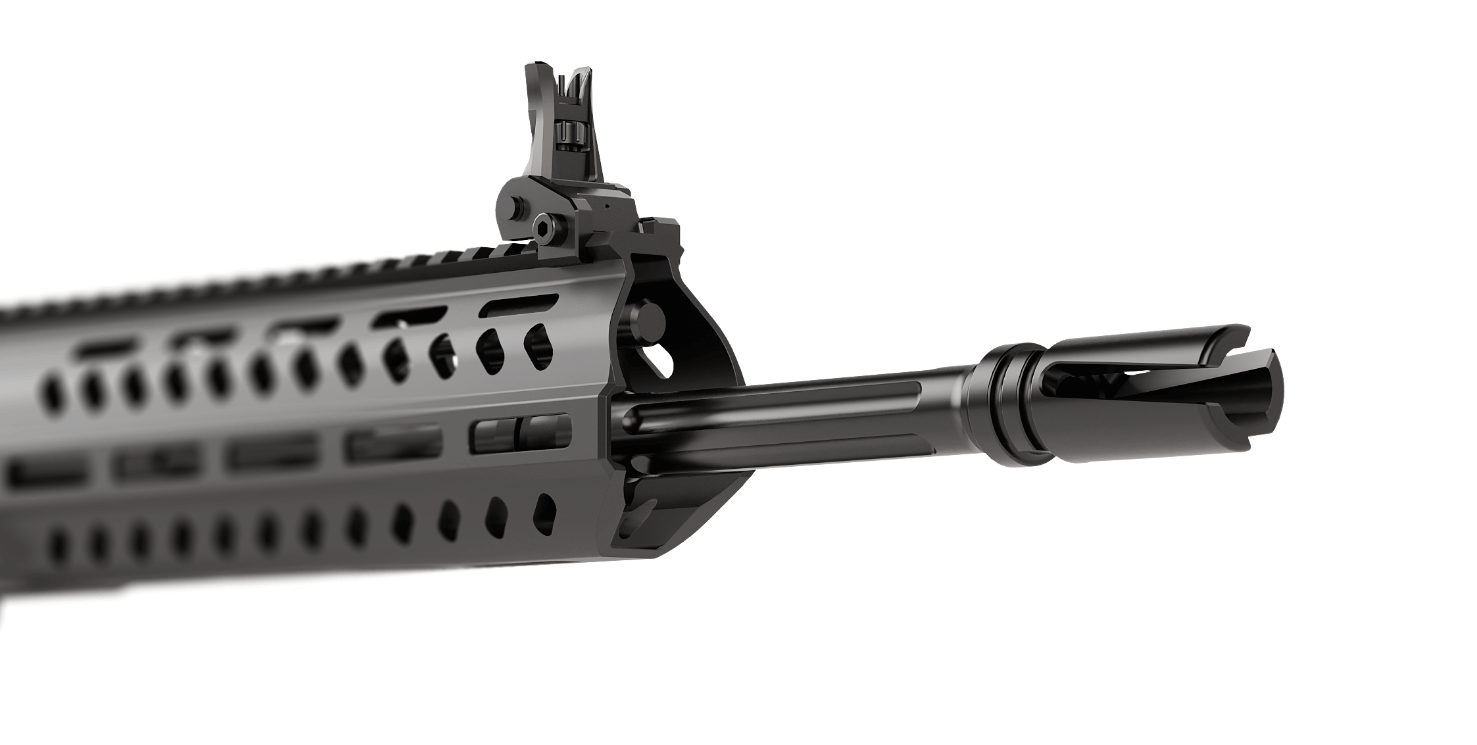

3 Prong Flash Hider
Free Floating Barrel & Handguard
Ambidextrous Weapon Controls
Suitable For Right & Left Hand Shooters with Ambidextrous Weapon Controls
7,62mm x 51 NATO
Firing Mode
Safe / Semi / Full Automatic
Maximum Length (Stock Extended)
950 mm
Minimum Length (Stock Collapsed)
870 mm
Overall Height (w/o Mechanical Sights)
195 mm
Weight (w/o Magazine)
4.000 g
Barrel Length
14,5” - 368 mm
Barrel Twist Rate
1:10” - 1:254 mm 6 grooves right hand twist
Flash Hider
3 Prong
Sight Radius
425 mm
Magazine Type
Polimer box type
Magazine Capacity
20 Rds
Muzzle Thread
Trigger Pull Weight
25 - 40 N
Rate of Fire
600 - 750 rpm
780 m/s
Effective Range
500 m

Advanced short stroke gas piston system

Suitable for right & left hand shooters with ambidextrous weapon controls

Free floating barrel & handguard

STANAG 4694/ M1913 Picatinny rails on the 4 sides of the handguard / MLOK

Upper Receiver with STANAG 4694/ M1913 Picatinny rails.

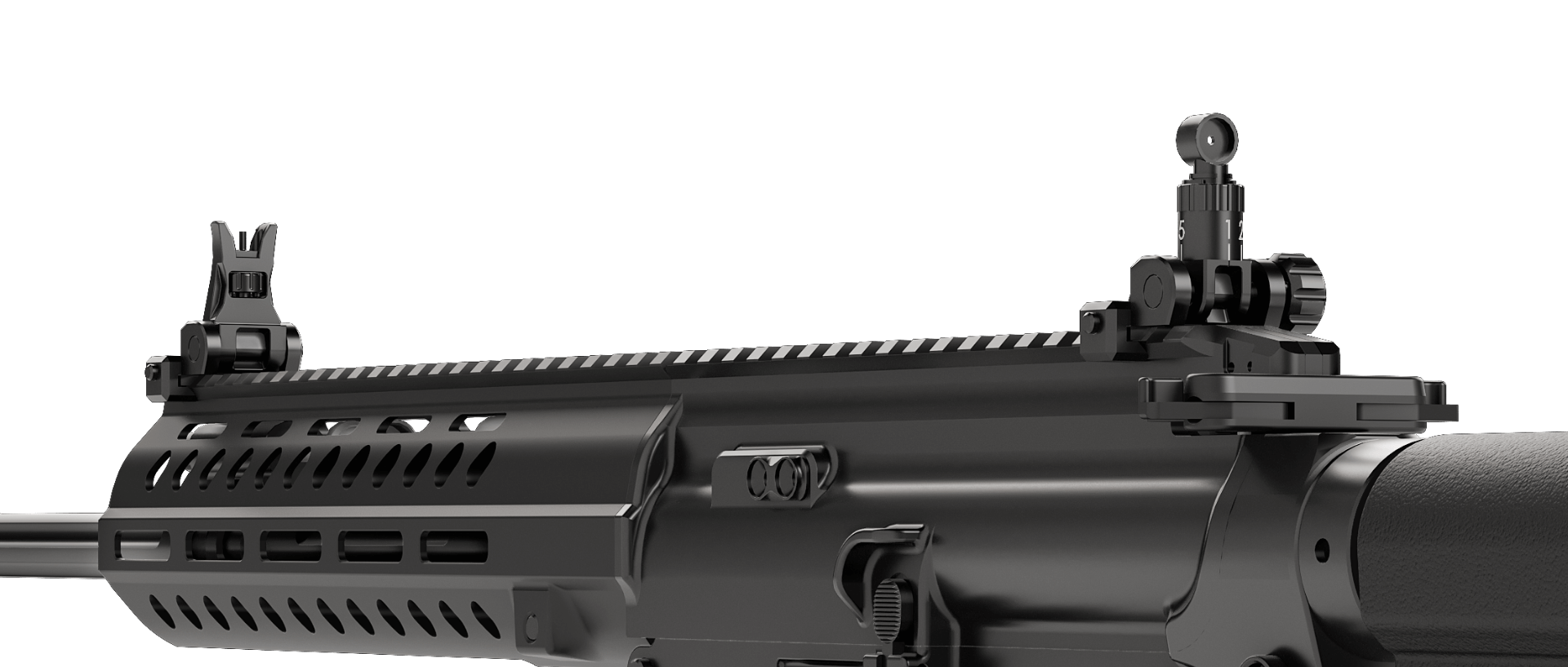

Modular range adjustable flip- up iron sights

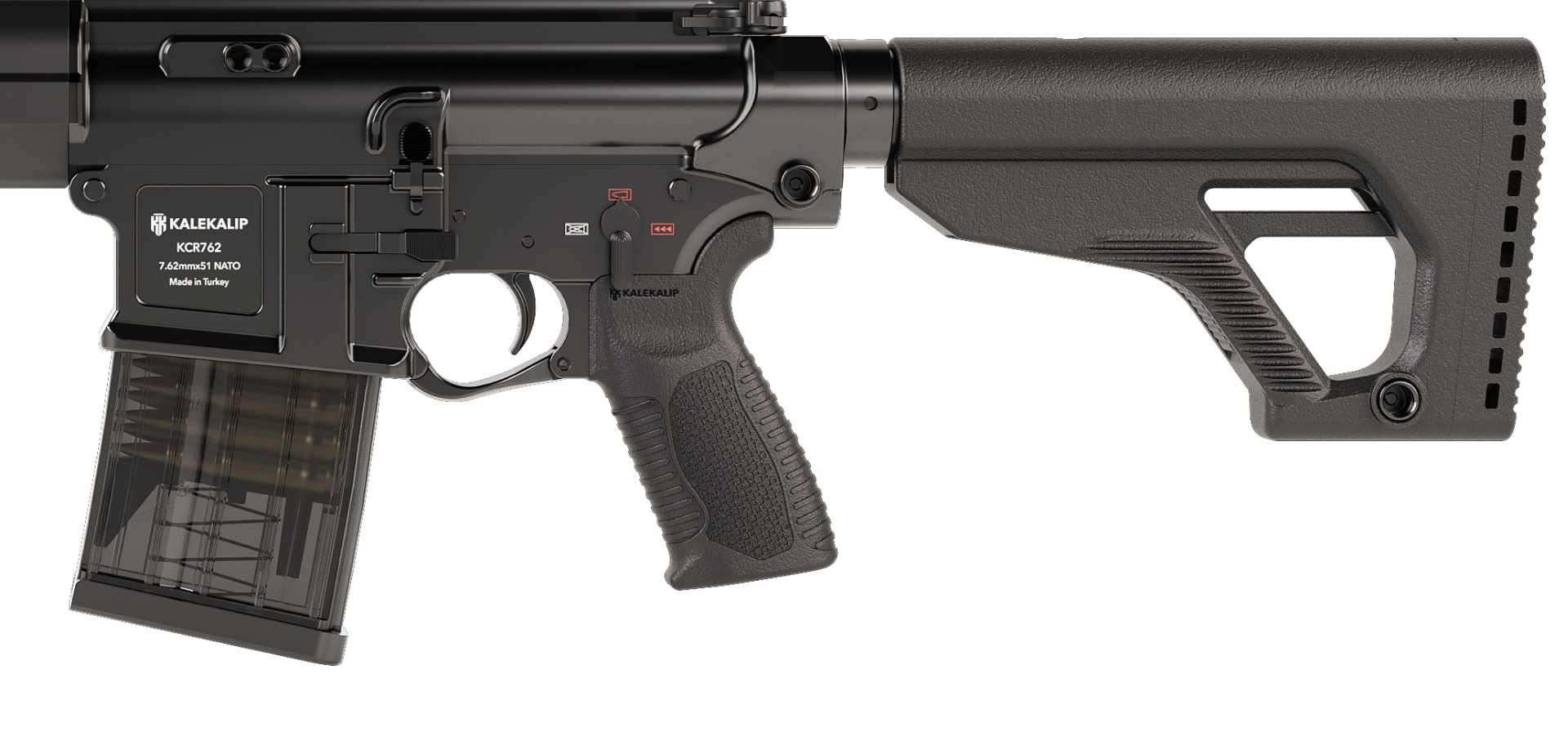

5 position telescopic adjustable stock

Various Cerakote® color options are available

MIL Spec / Aerospace Grade Al-7075 (7050) Forged Receivers and Handguard

MIL Spec 11595 Cold hammer forged barrel, hard chrome plated ID, manganese phosphate coated OD and polished chamber
