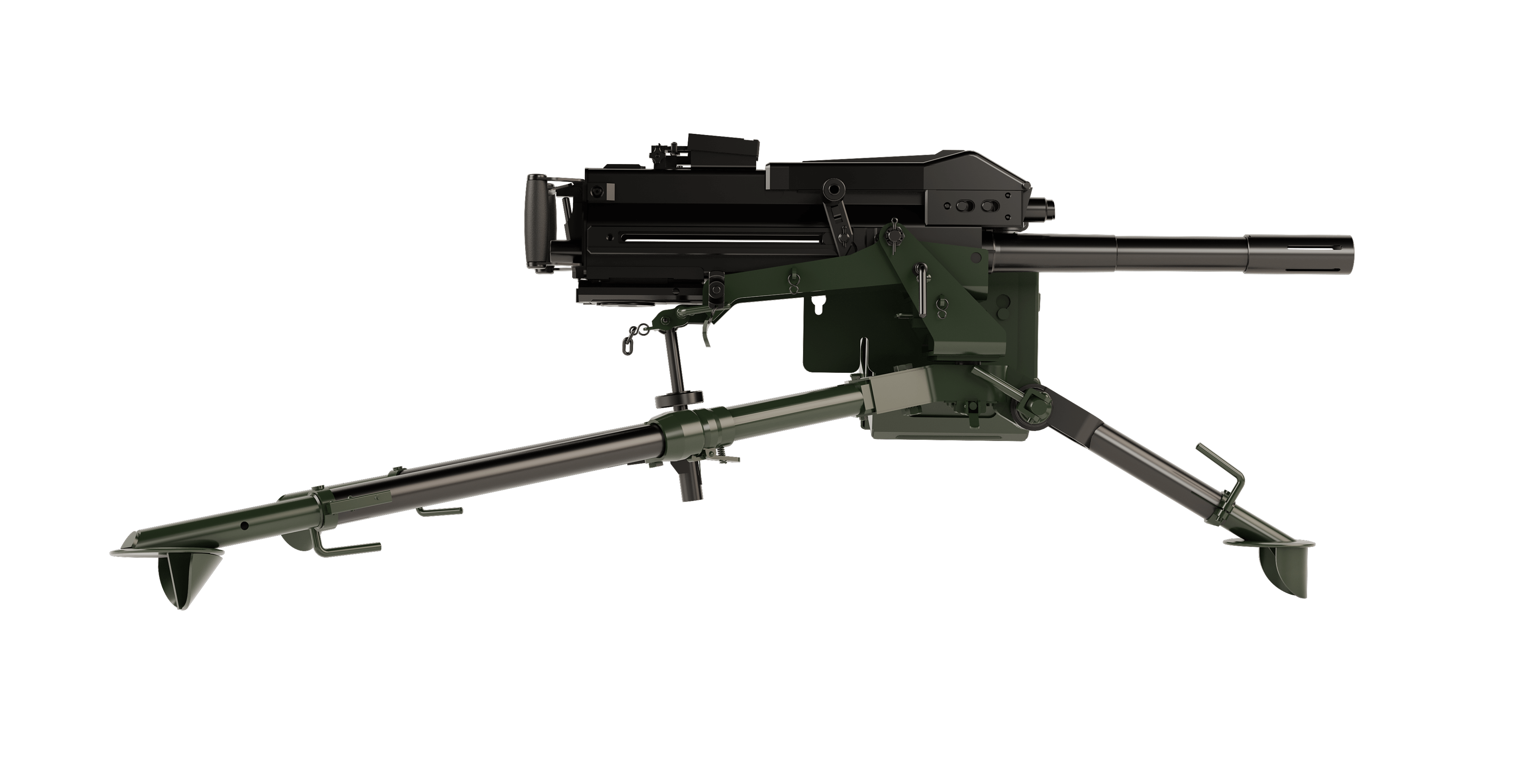

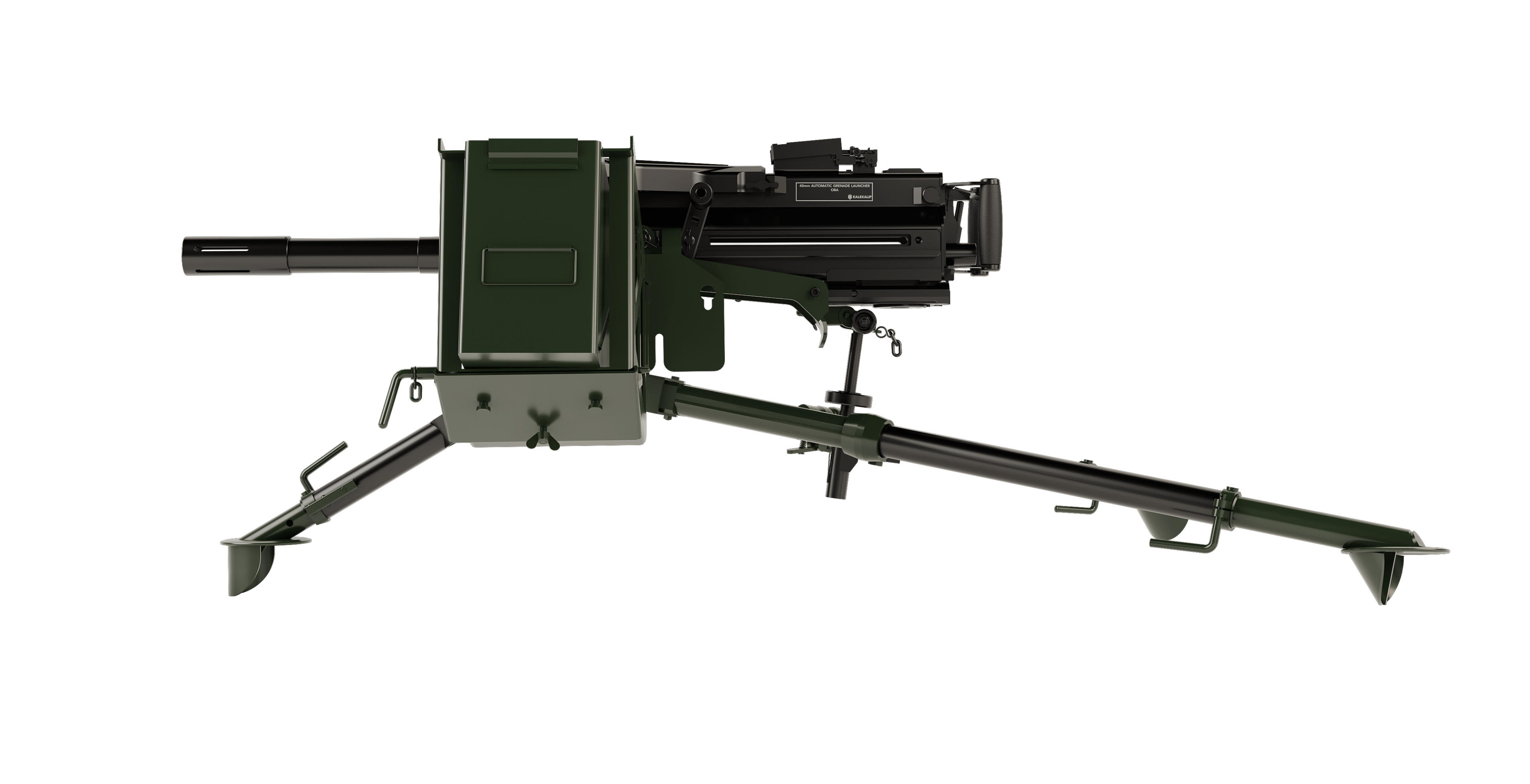

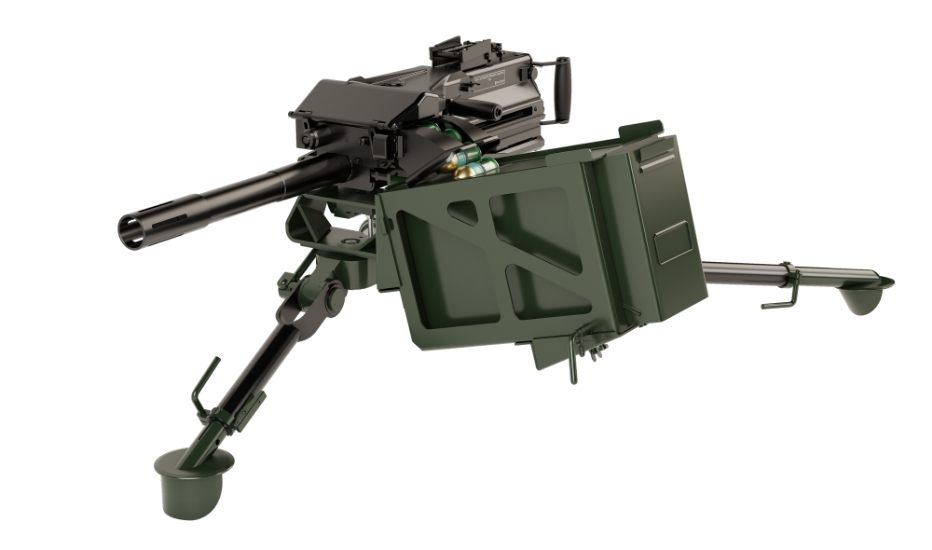

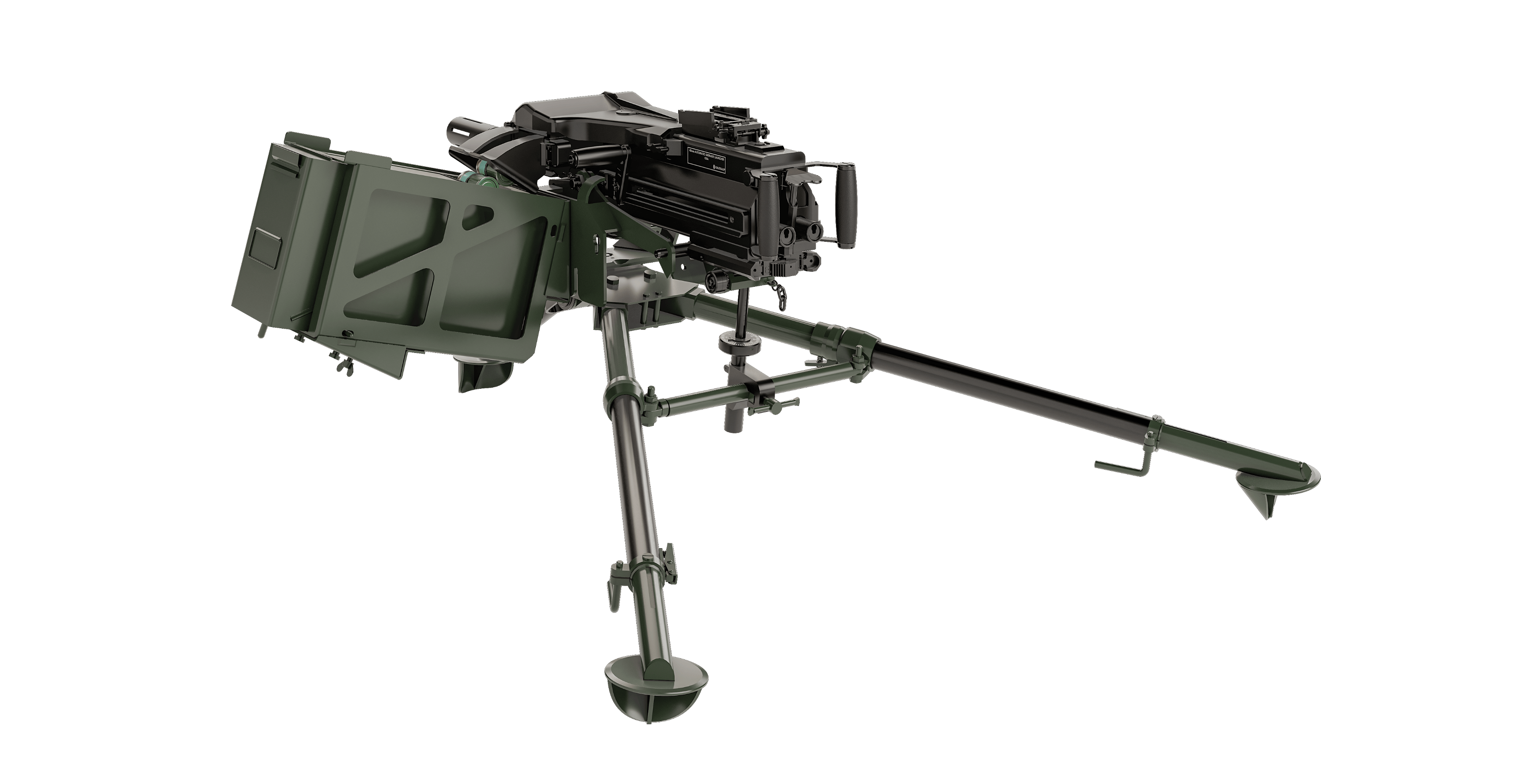

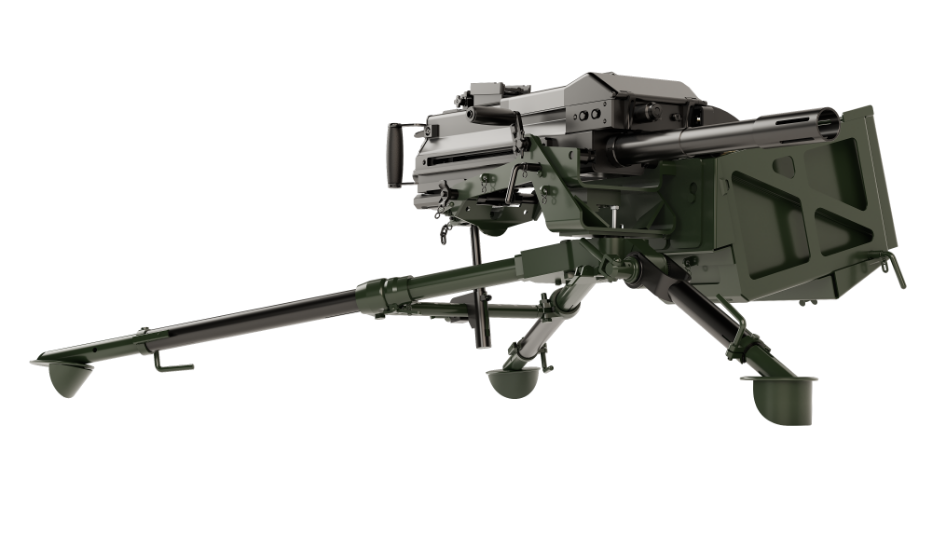

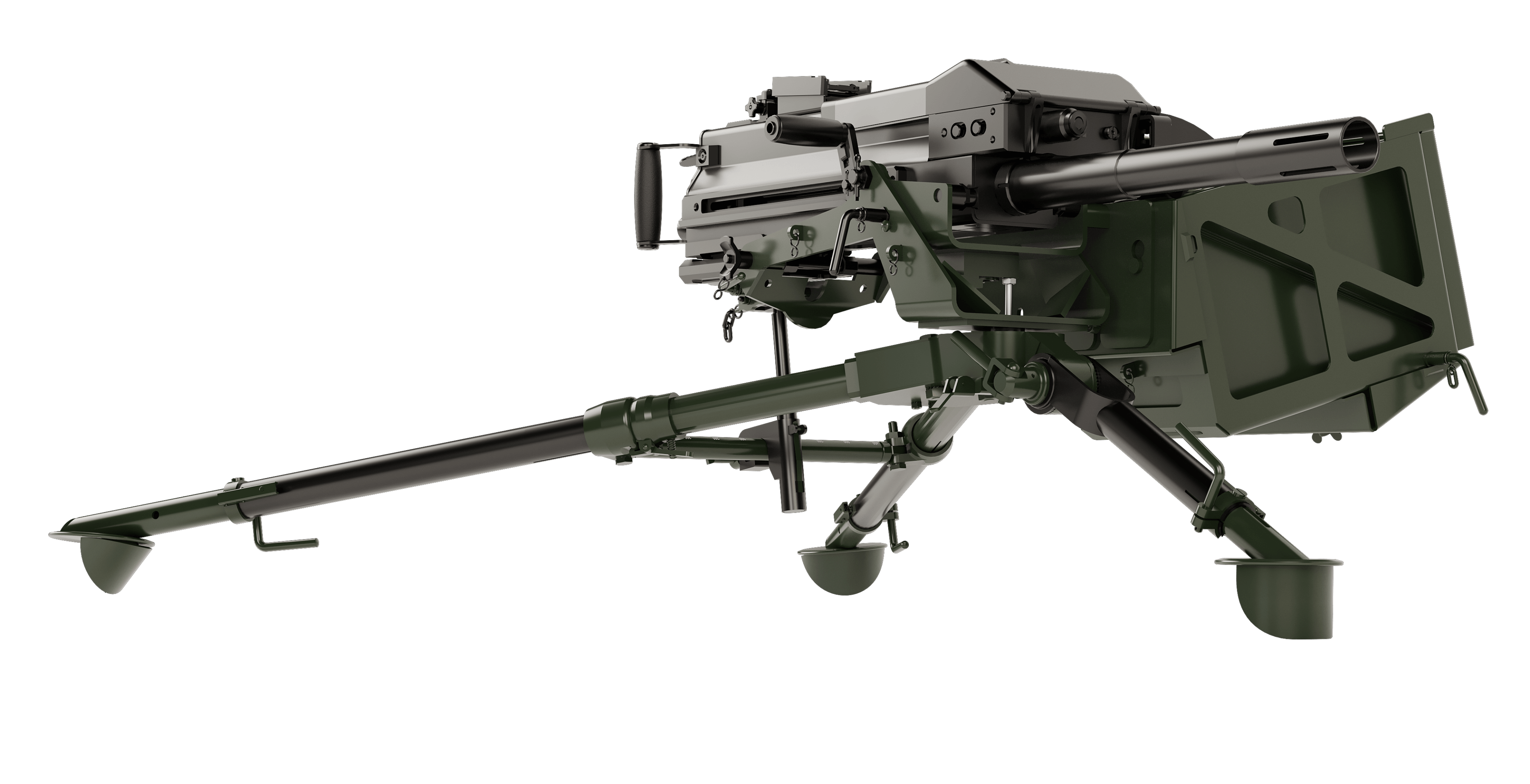

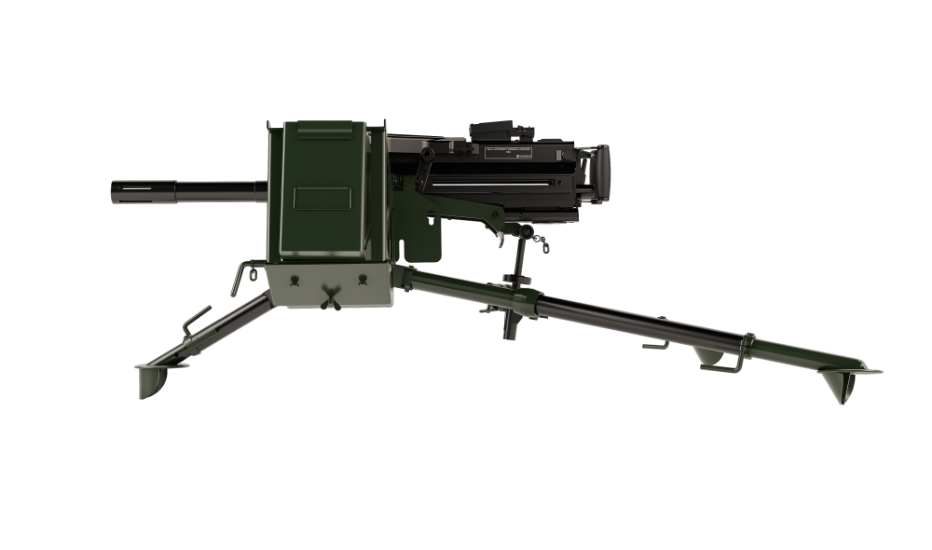

KAGL40

Automatic Grenade Launcher

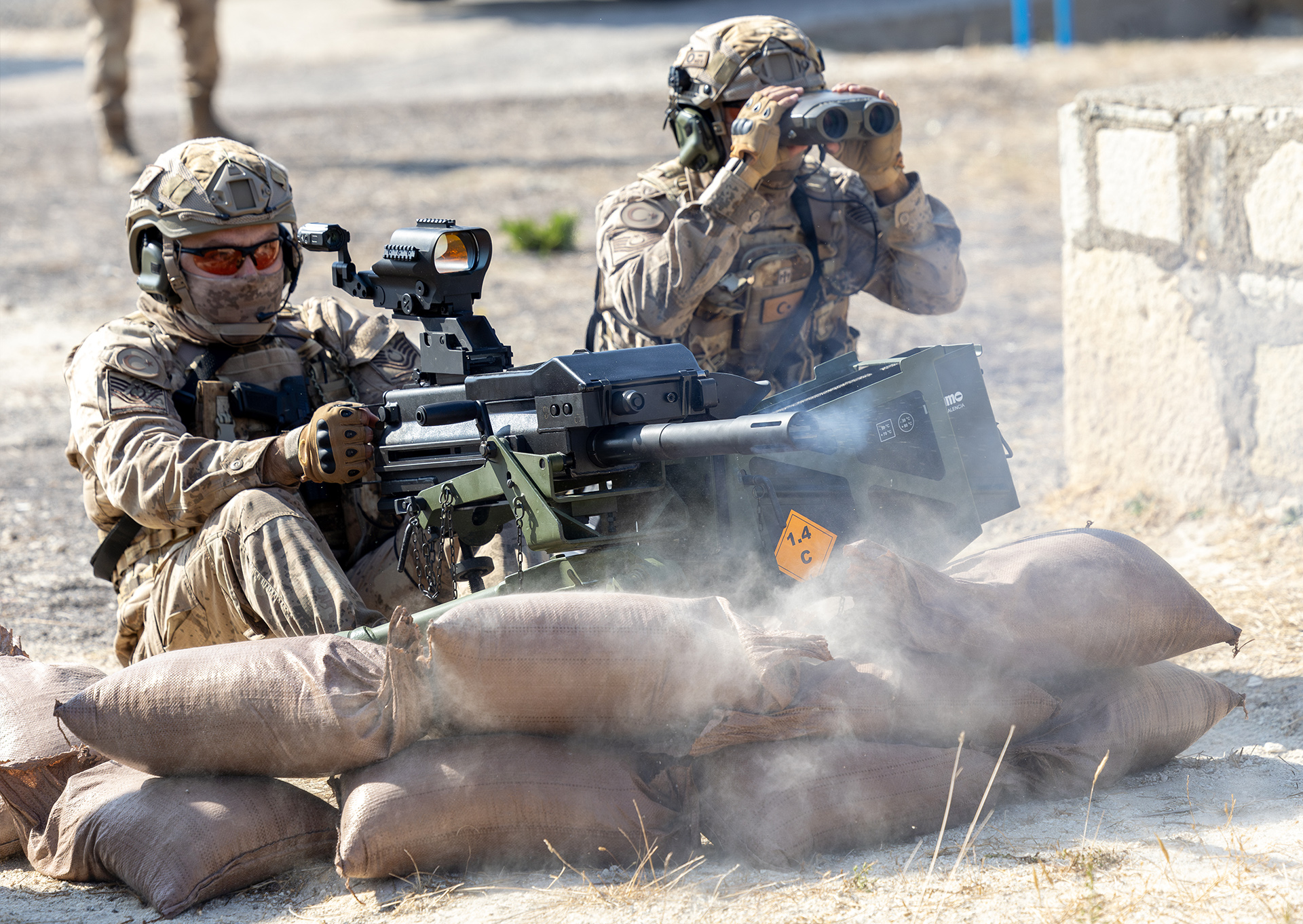

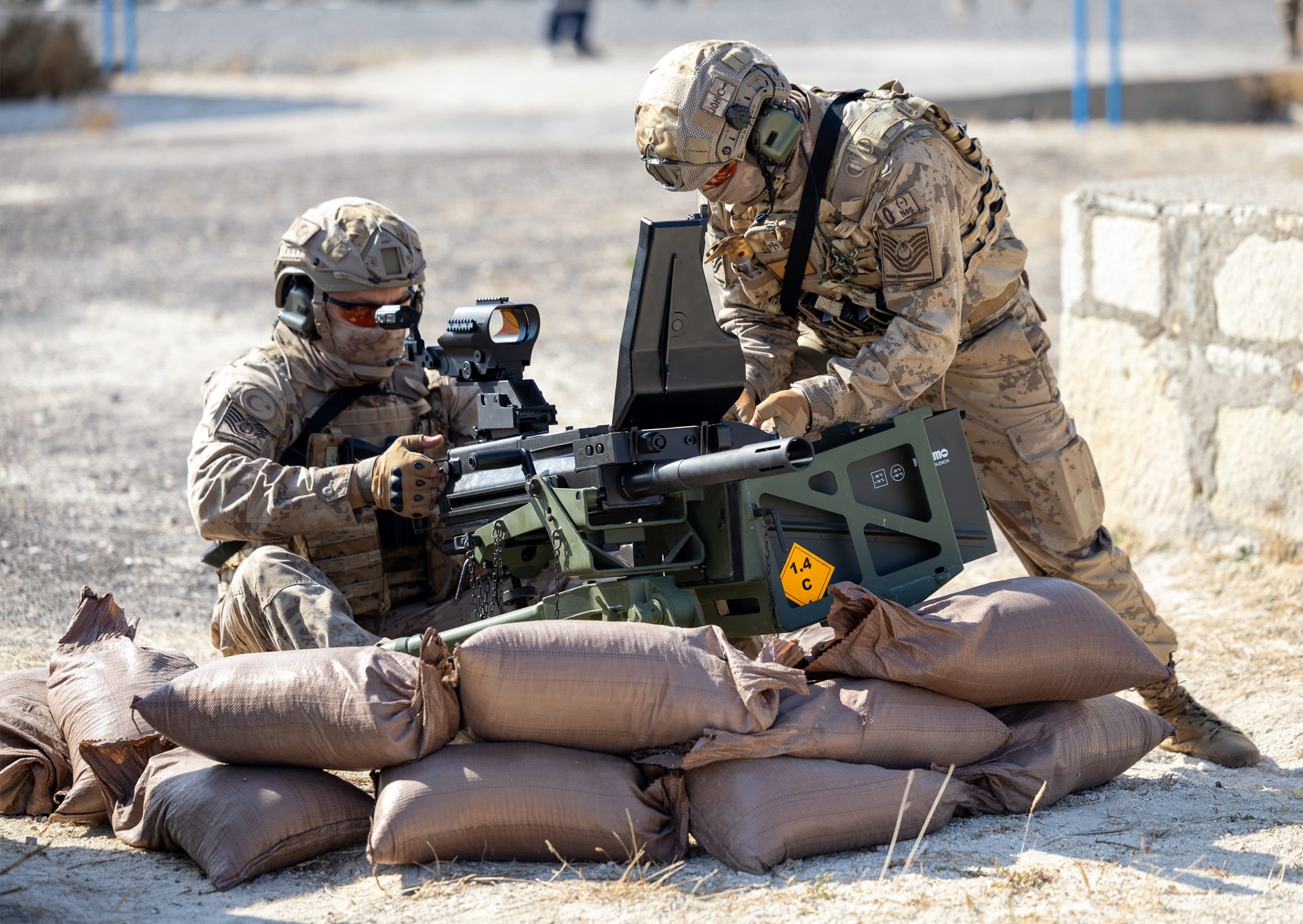

The 40mm KAGL is a fully automatic, blowback operated, air-cooled machine gun. Deployable from a tripod for ground use or mobile from vehicles or boats by the standardized interface. M430 HEDP round will pierce 2” (50mm) thick armor plate. It can fire between 1.500- 2.200 meters effectively. The KAGL40, which has been produced since 2005, has been in the inventory of the Turkish Armed Forces for many years.

Specs
Calibre
40mm x 53 (HV)
Principle Of Operation
Recoil operated open bolt
Feed Mechanism
Belt fed from left side
Firing Mode
Safe / Full Automatic
Length
1.090 mm
Width
340 mm
Height
225 mm
Barrel Length
415 mm
Weight
35 kg w/o mount & tripod
Ammo
HE, HEDP, TP, TPT
Crew
3 P
Number Of Grooves
18 and/or 24
Muzzle Velocity
240 m/s
Rate of Fire
280 - 380 rpm
Effective Range
Approx. 1.500 m
Maximum Range
Max. 2.000 m
0%
Features

Fully automatic, blowback operated, air-cooled grenade machine gun

Standardized interface enabling use from M3 Tripods or any compatible vehicles (Armored Vehicles, Assault Boats etc.)
