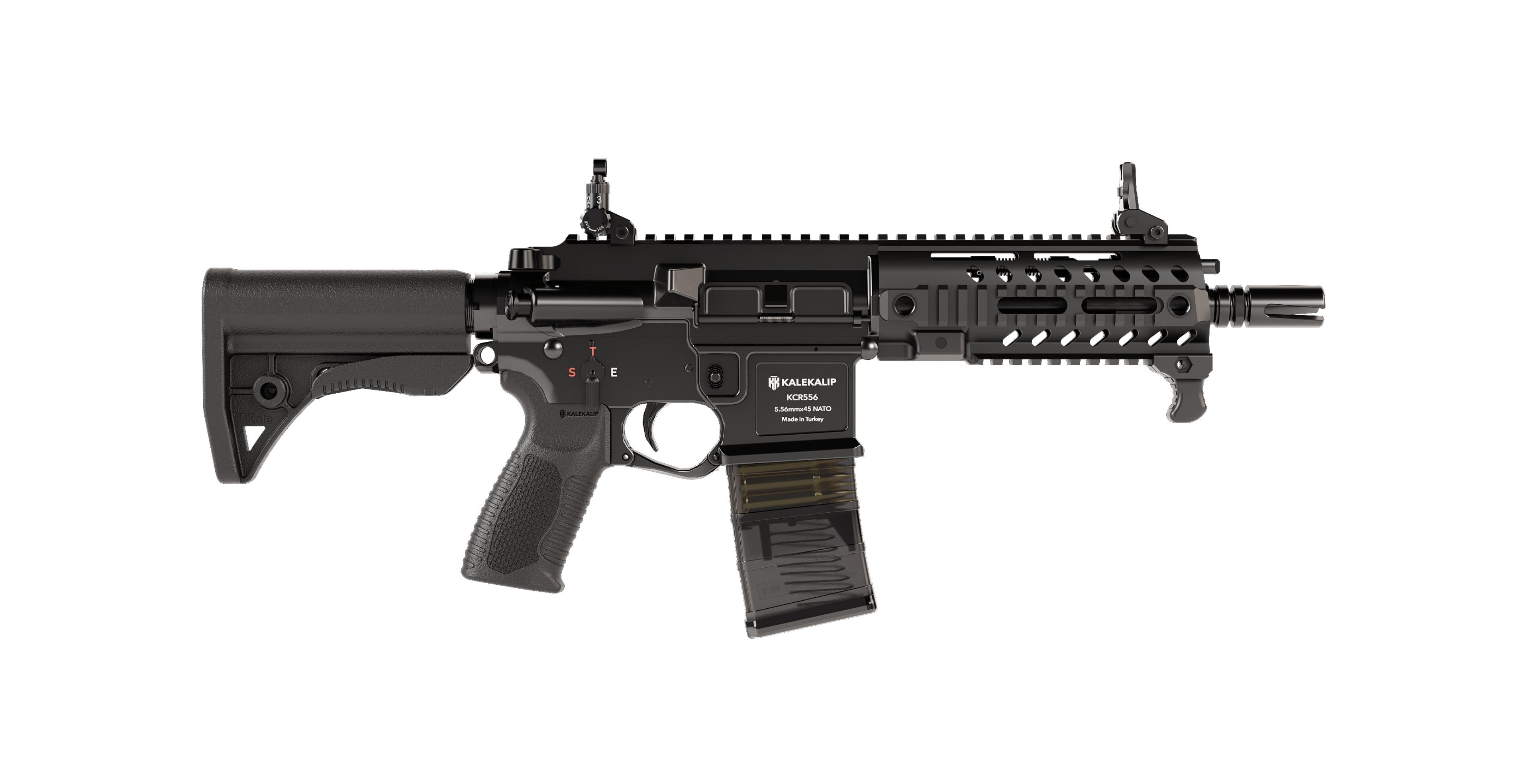

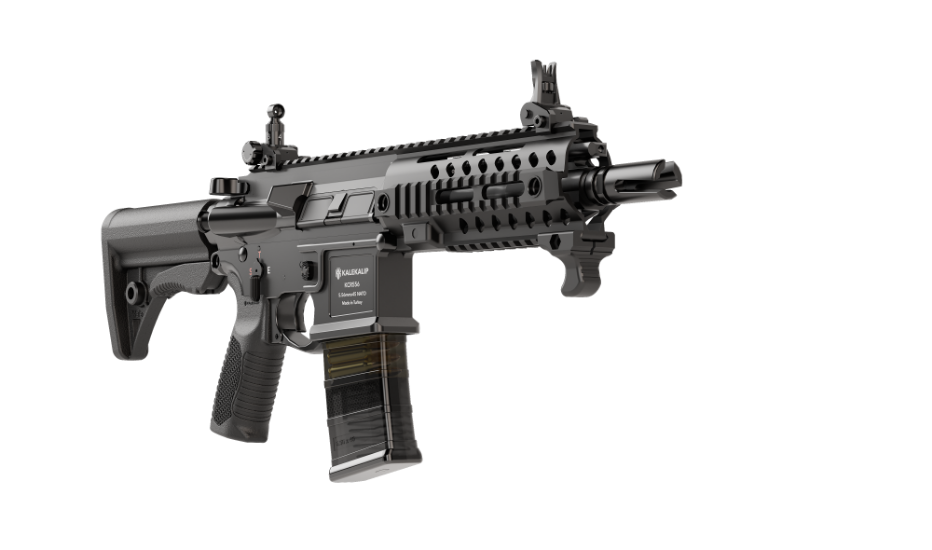

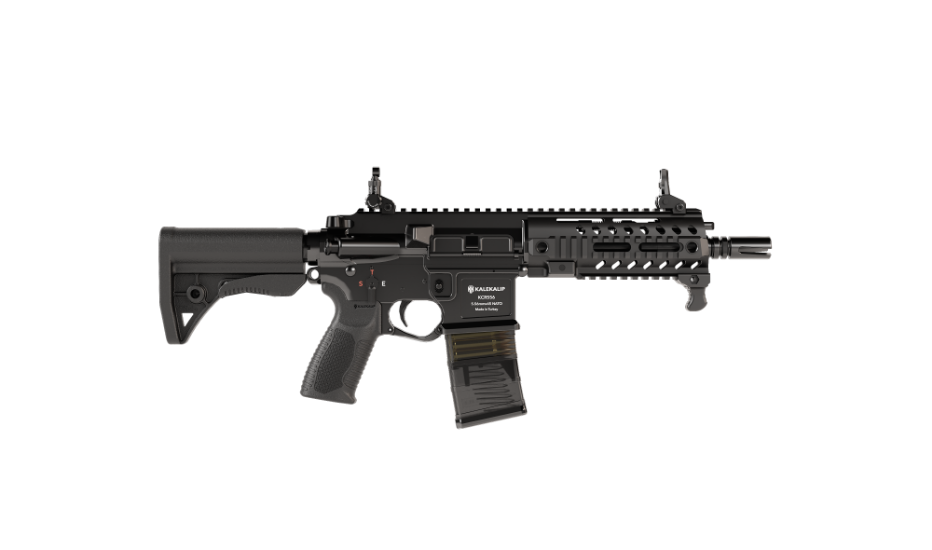

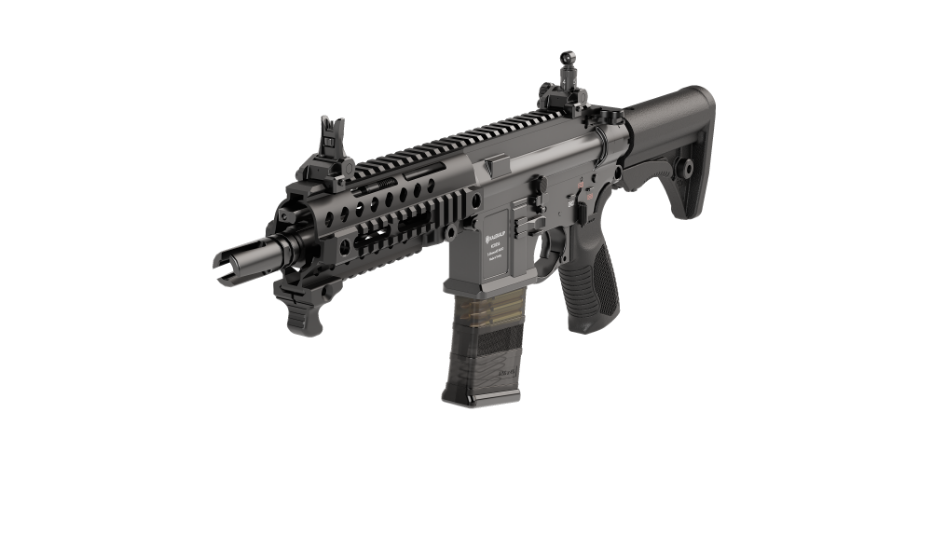

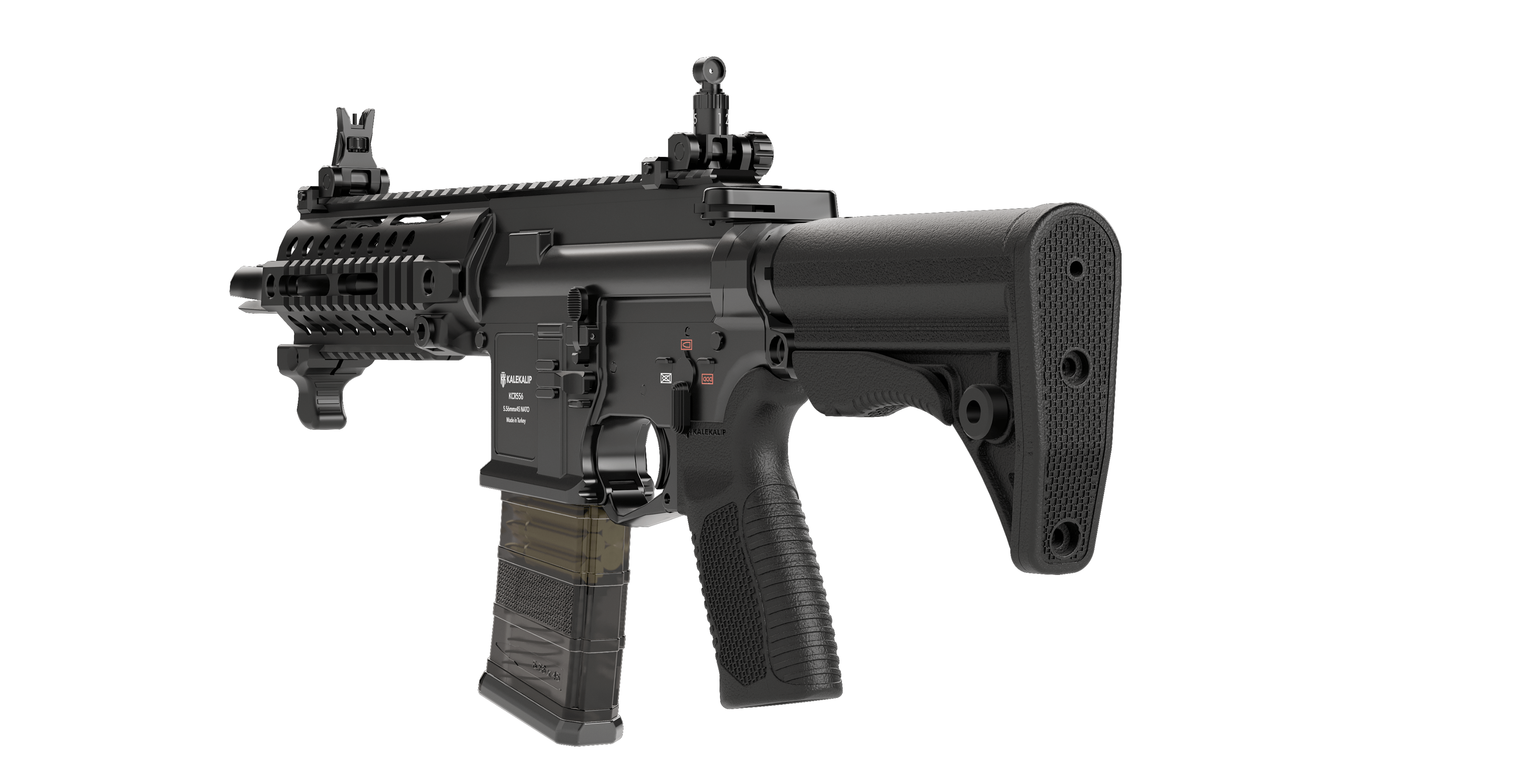

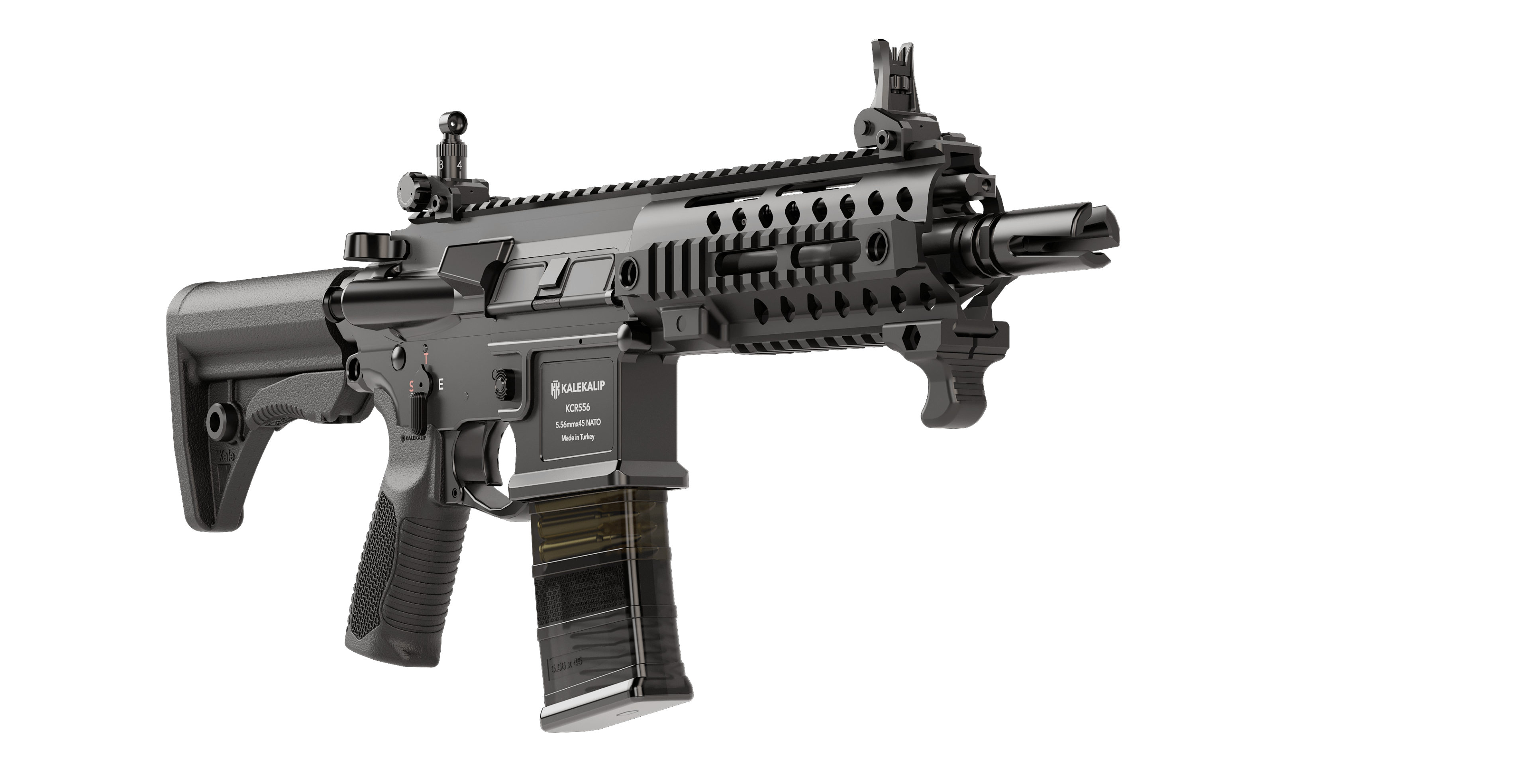

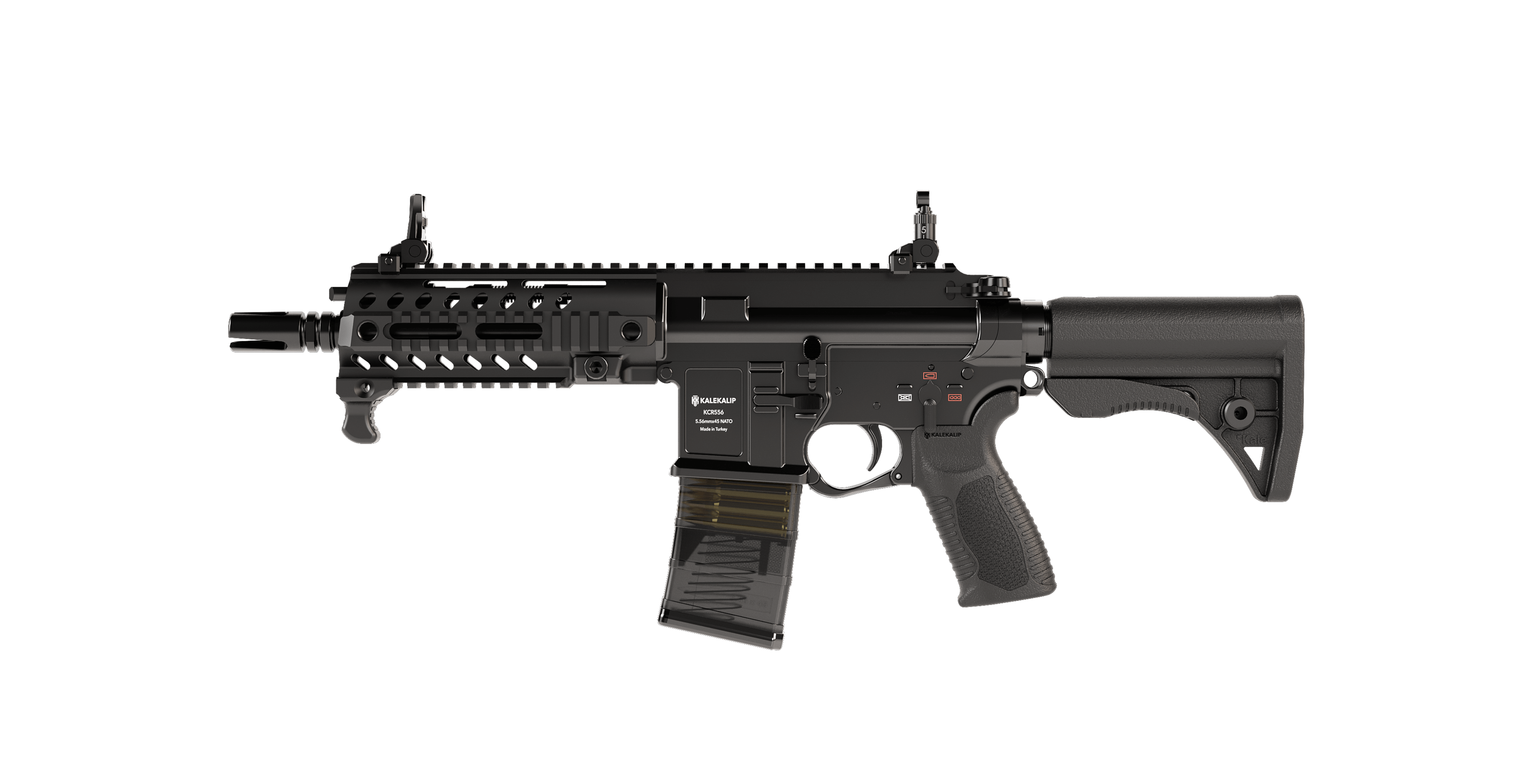

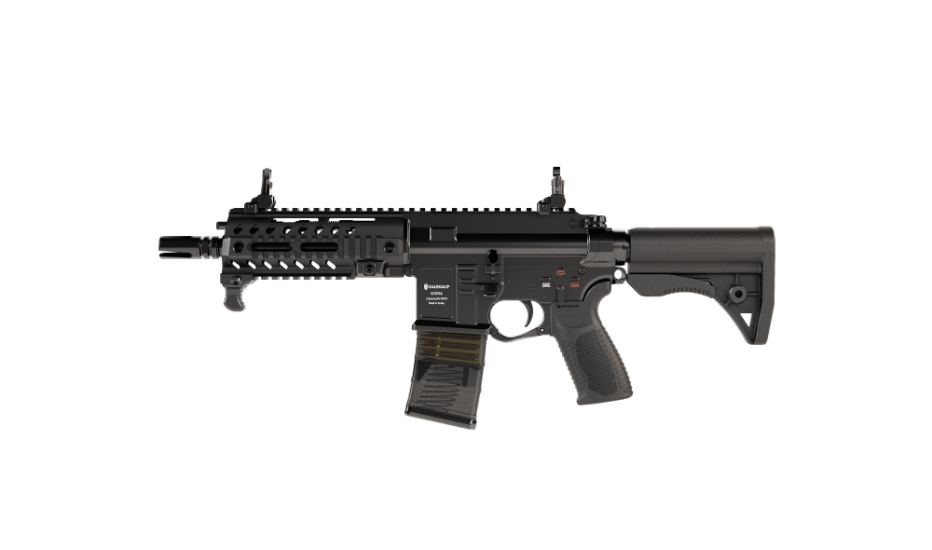

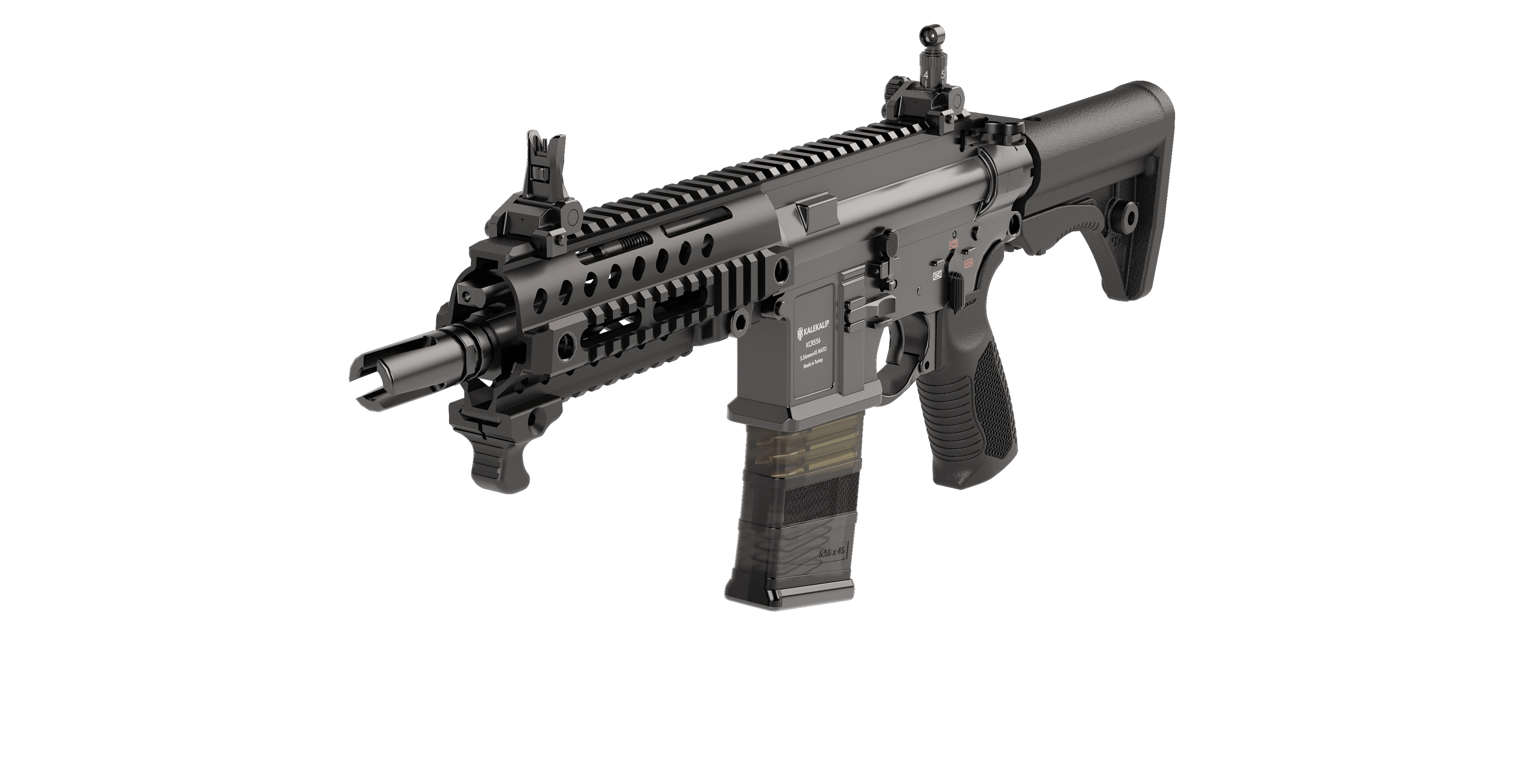

KCR556

7,5” PDW

KCR556
7,5" PDW
Forged Receivers and Handguard
MIL Spec / Aerospace Grade Al-7075 (7050) Forged Receivers and Handguard

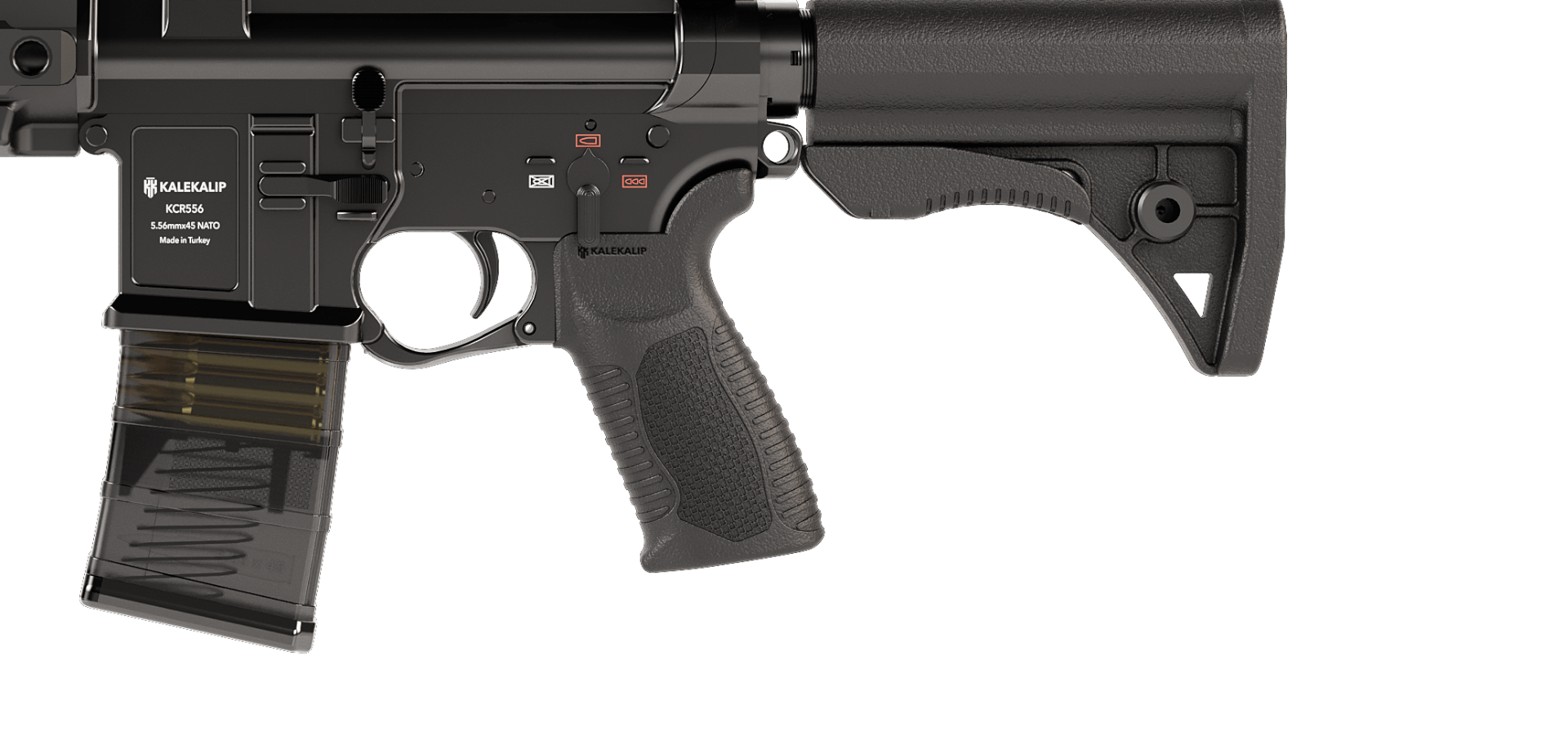

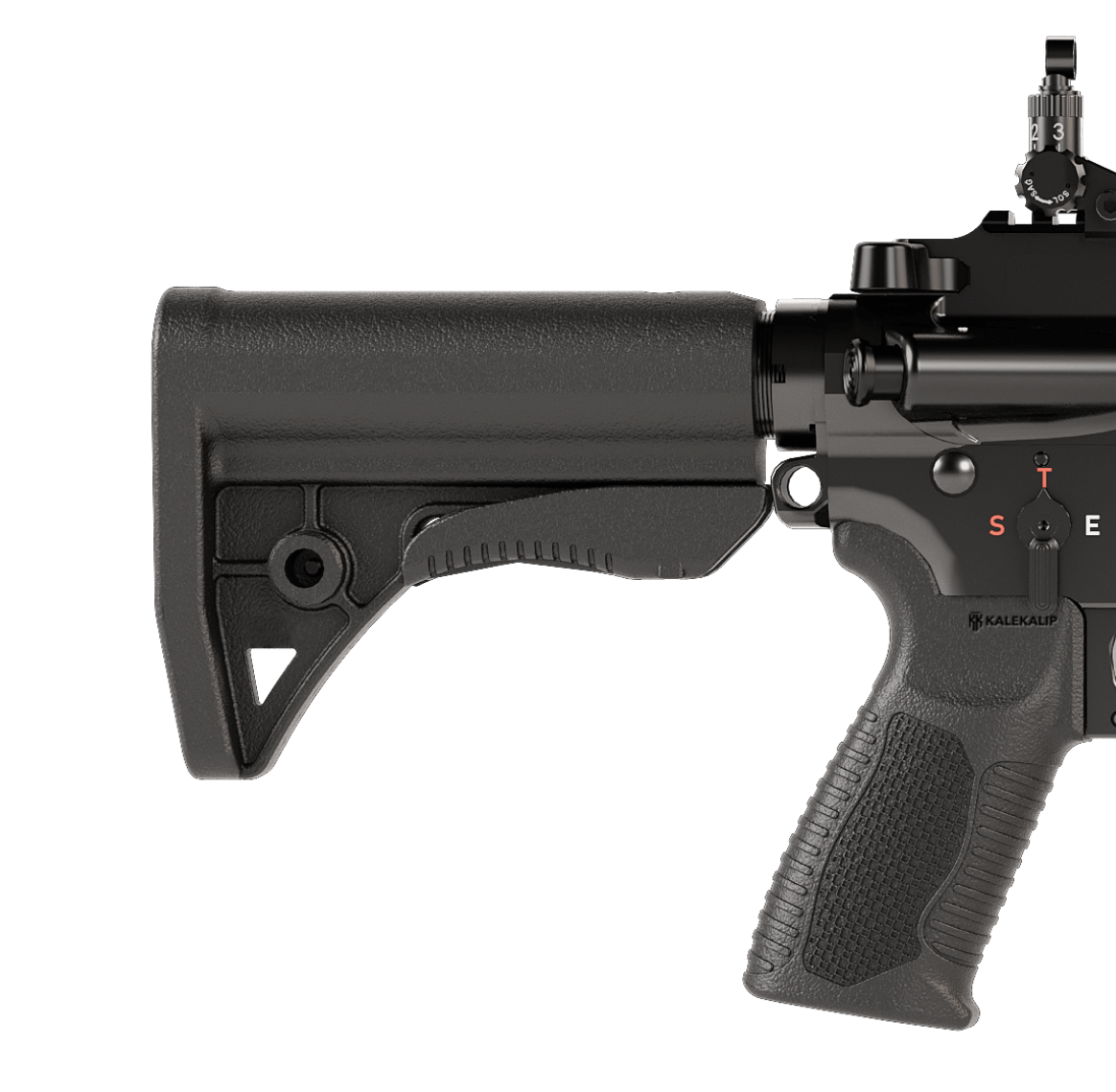

5 Position Telescopic Adjustable Stock

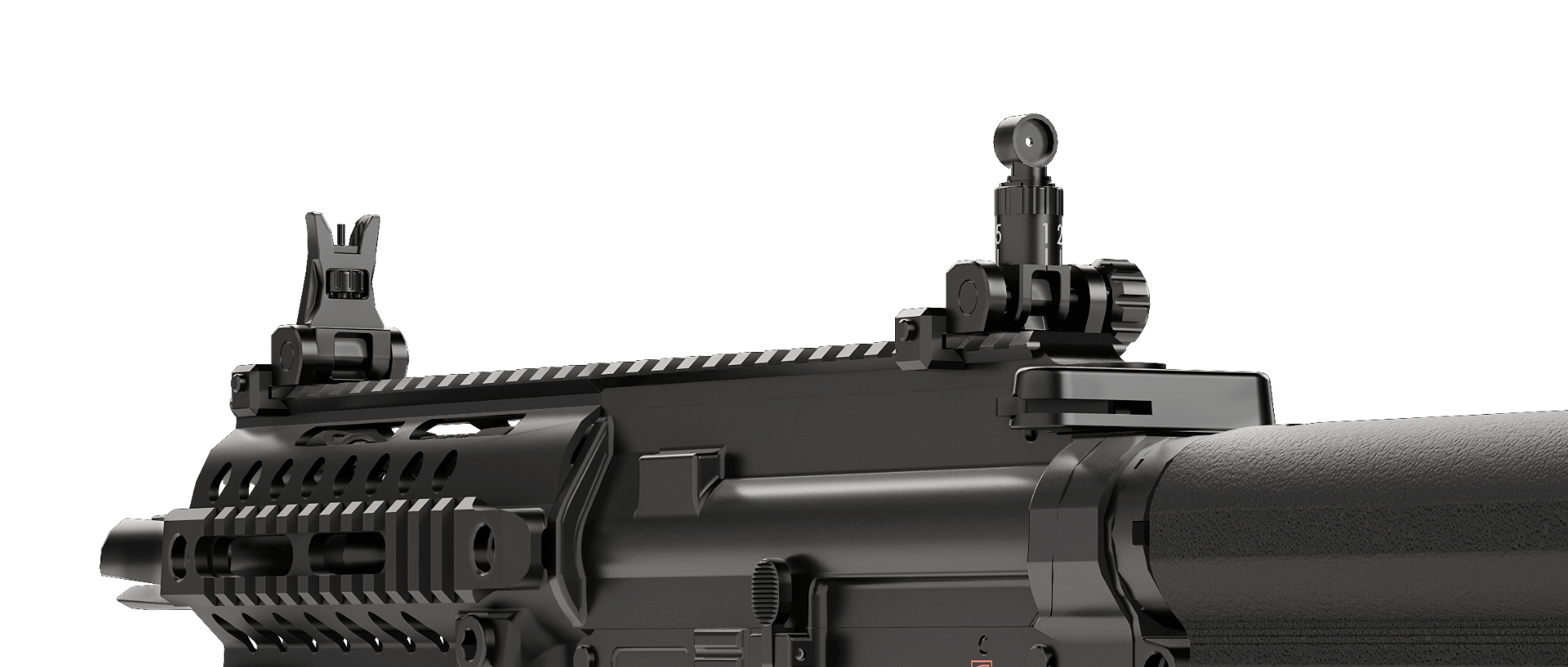

Modular Flip - up Iron Sights
15.000 Rds. Barrel Life

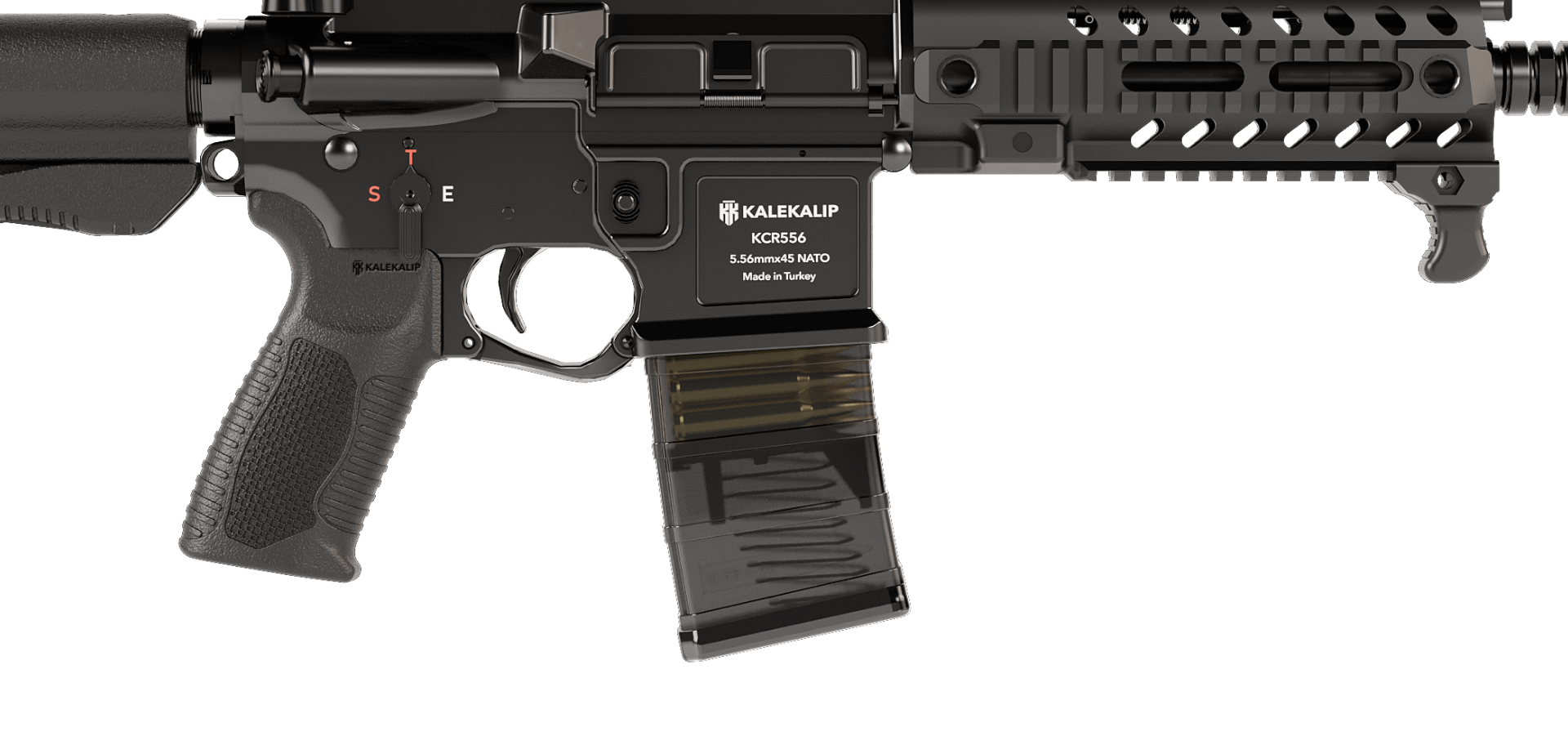

Ambidextrous Weapon Controls
Suitable For Right & Left Hand Shooters with Ambidextrous Weapon Controls
Specs
Calibre
5,56mm x 45 NATO
Firing Mode
Safe / Semi / Full Automatic
Maximum Length (Stock Extended)
670mm
Minimum Length (Stock Collapsed)
585 mm
Overall Height (w/o Mechanical Sights)
185 mm
Weight (w/o Magazine)
2.850 g
Barrel Length
7,5” - 190 mm
Barrel Twist Rate
1:7” - 1:178 mm 6 grooves right hand twist
Flash Hider
3 Prong
Sight Radius
290 mm
Magazine Type
STANAG Box Type Composite
Magazine Capacity
20 R ds, 30 Rds.
Muzzle Thread
½-28 UNEF - A2
Trigger Pull Weight
25 - 40 N
Rate of Fire
800 - 1.000 rpm
Velocity
615 m/s
Effective Range
200 m
0%
Features

Advanced short stroke gas piston system

Suitable for right & left hand shooters with ambidextrous weapon controls

Cold hammer forged barrel with hard chrome plated ID, manganese phosphate coated OD and polished chamber

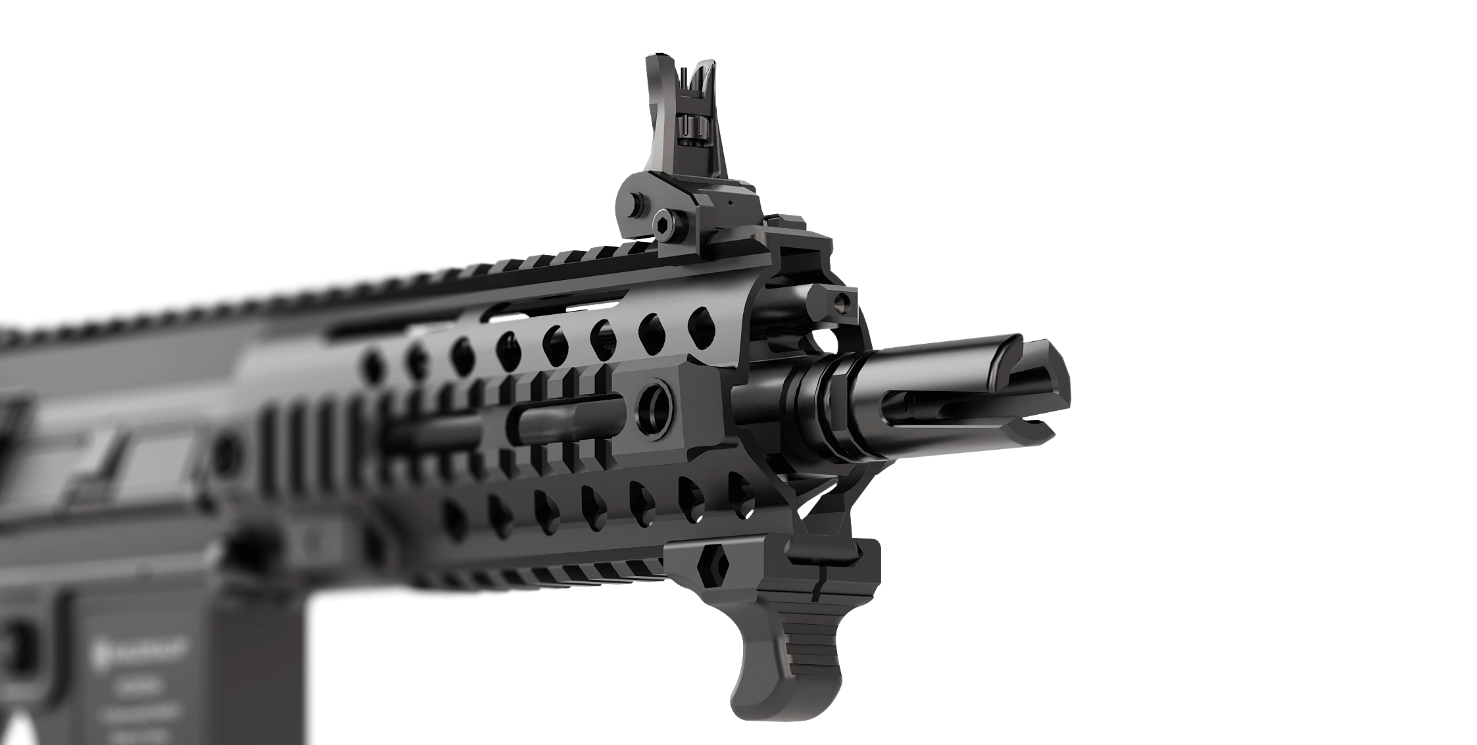

STANAG 4694/ M1913 Picatinny rails on the 4 sides of the handguard / MLOK

Upper Receiver with STANAG 4694/ M1913 Picatinny rails.

Free floating barrel & handguard

Modular flip - up iron sights

5 position telescopic adjustable stock

Various Cerakote® color options are available

15.000 Rds. barrel life

MIL Spec / Aerospace Grade Al-7075 (7050) Forged Receivers and Handguard

MIL Spec 11595 Cold hammer forged barrel, hard chrome plated ID, manganese phosphate coated OD and polished chamber
