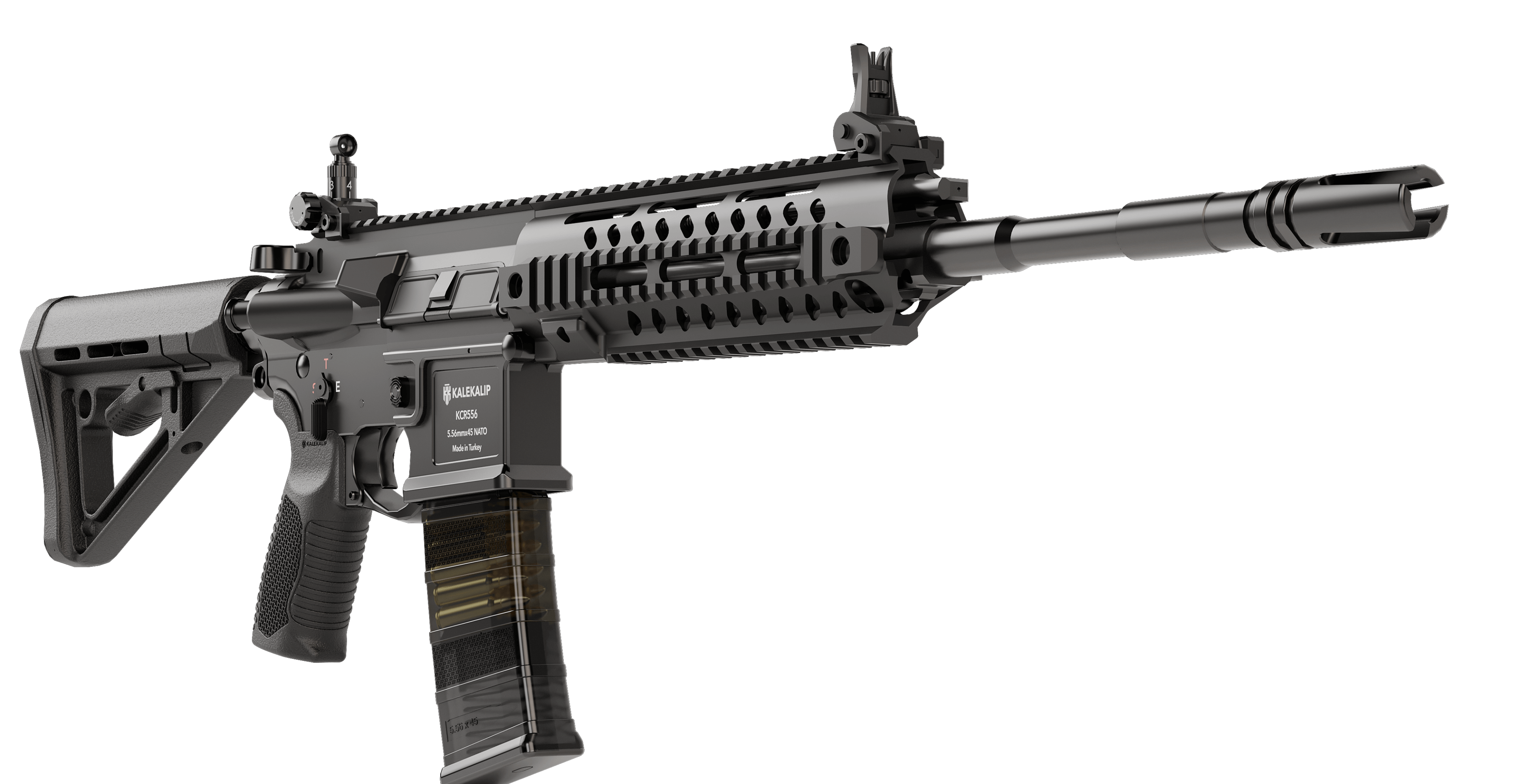

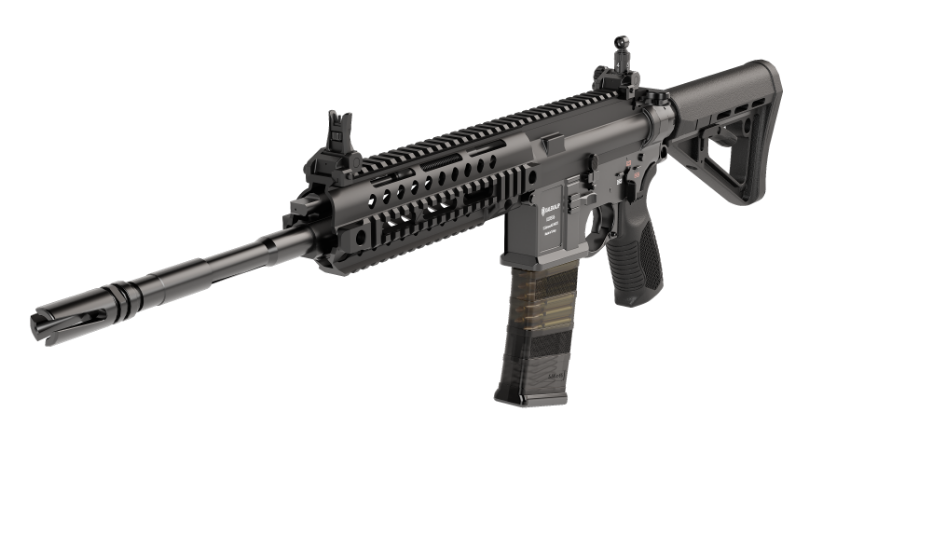

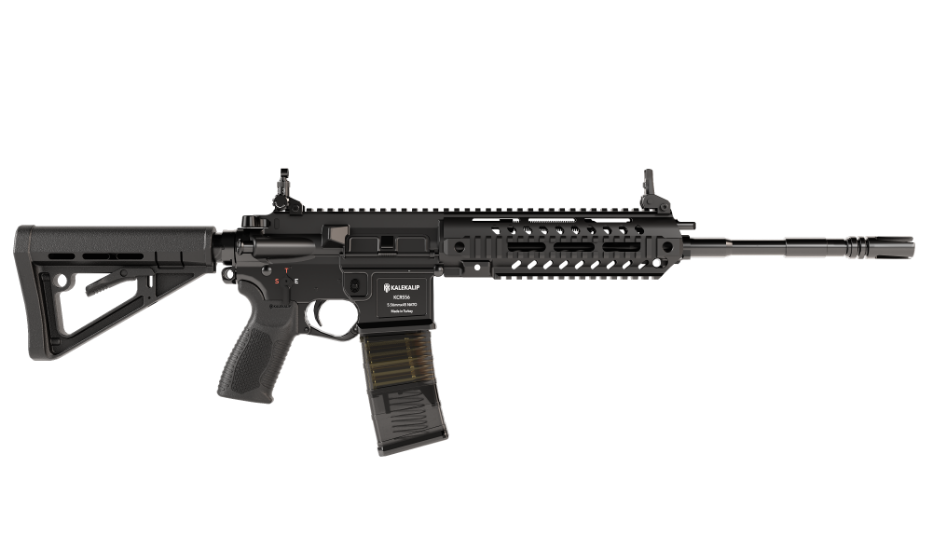

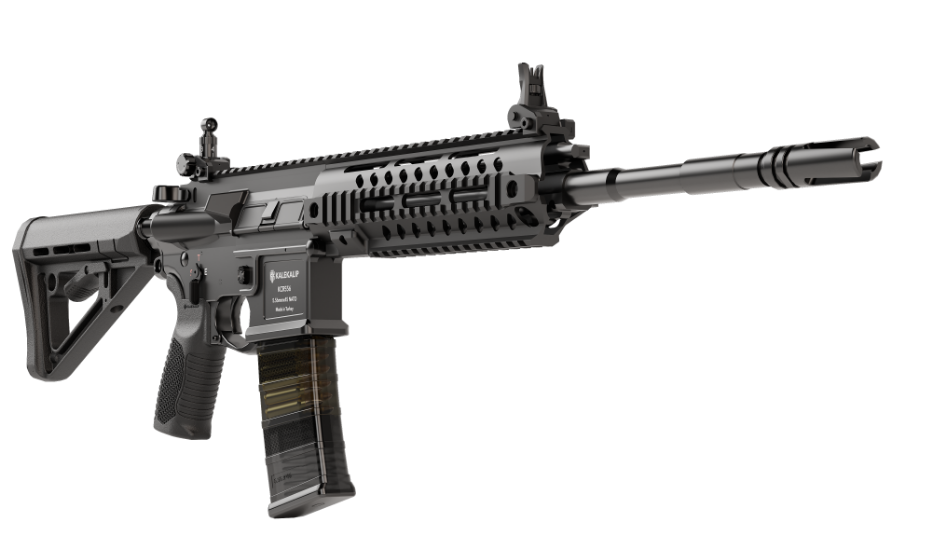

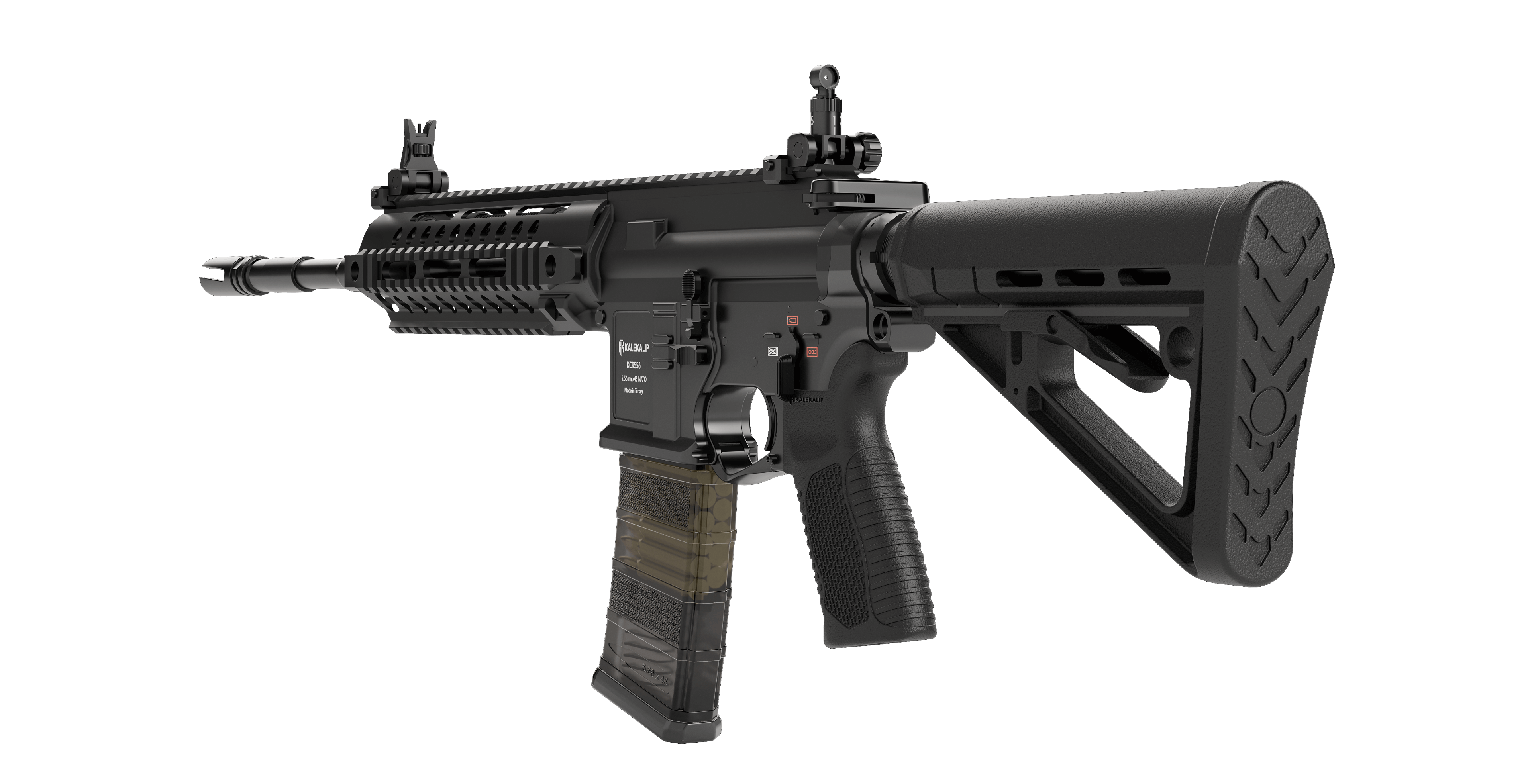

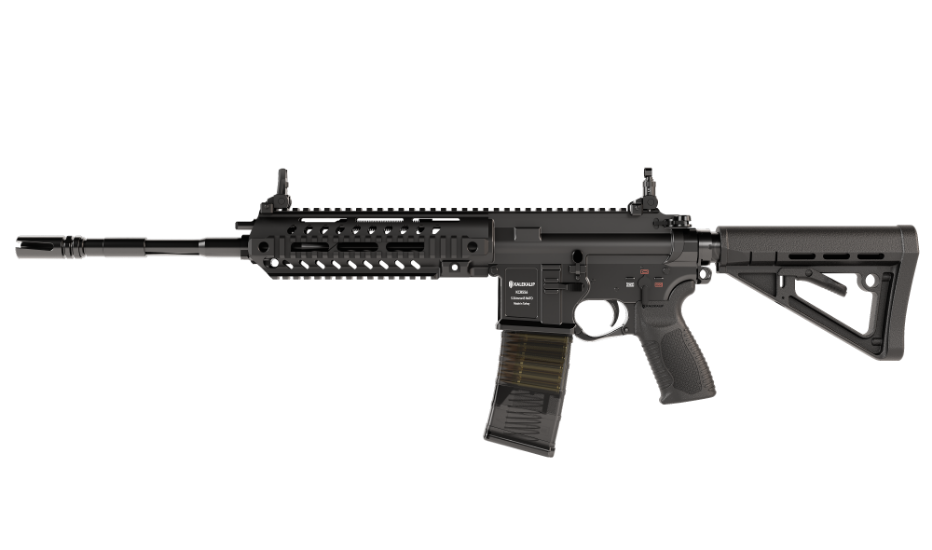

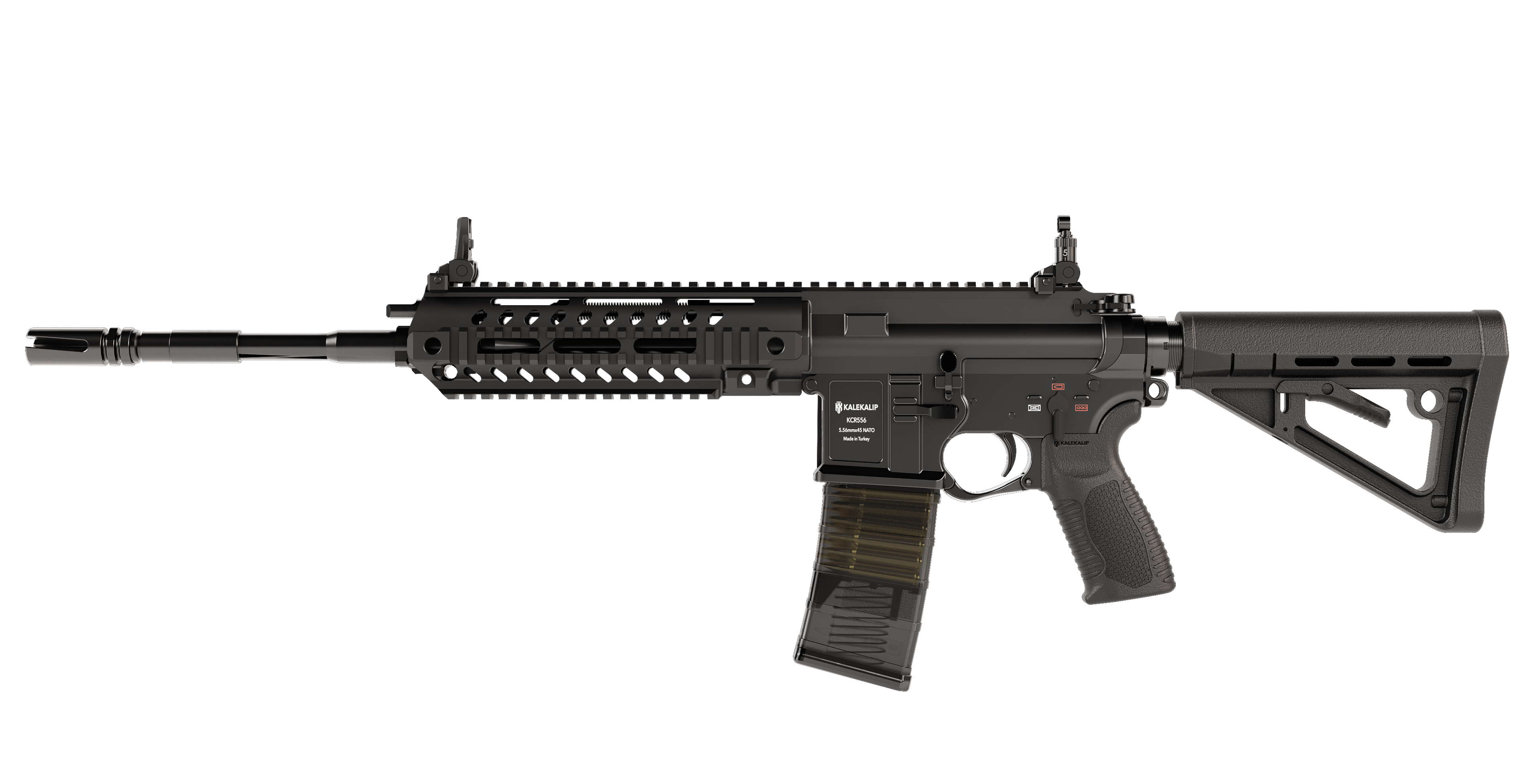

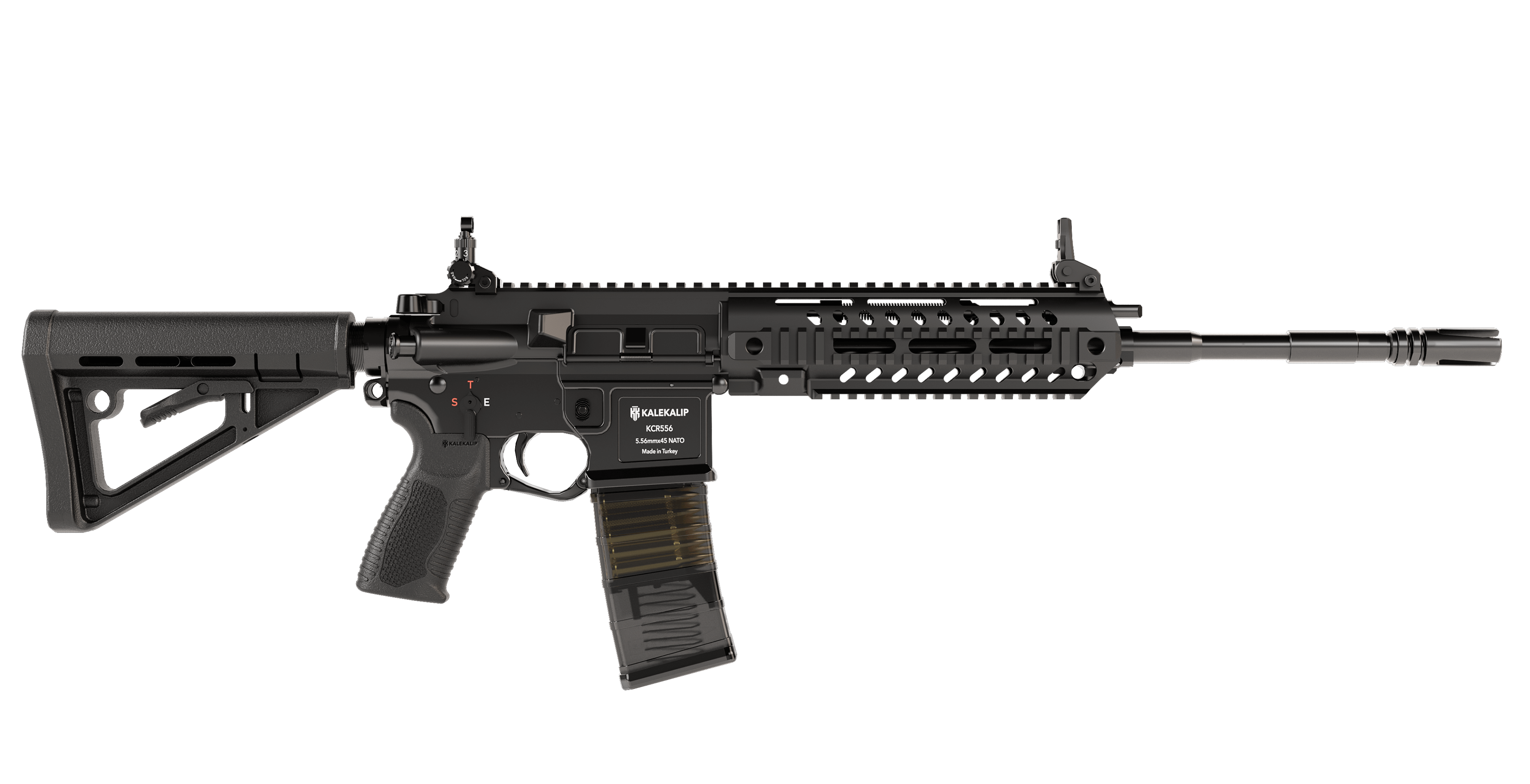

KCR556

16” Infantry Rifle

KCR556
16"
Forged Receivers and Handguard
MIL Spec / Aerospace Grade Al-7075 (7050) Forged Receivers and Handguard

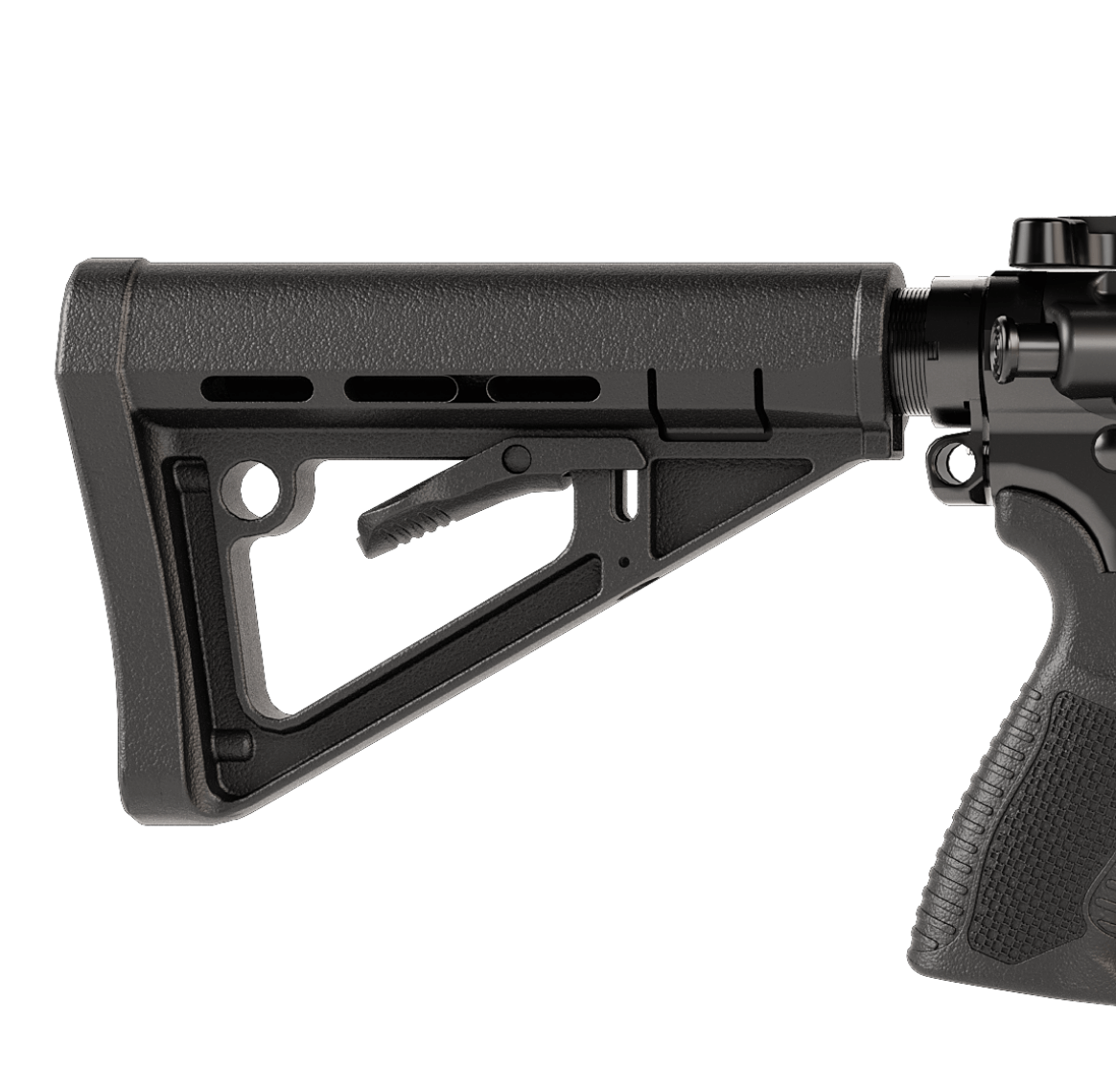

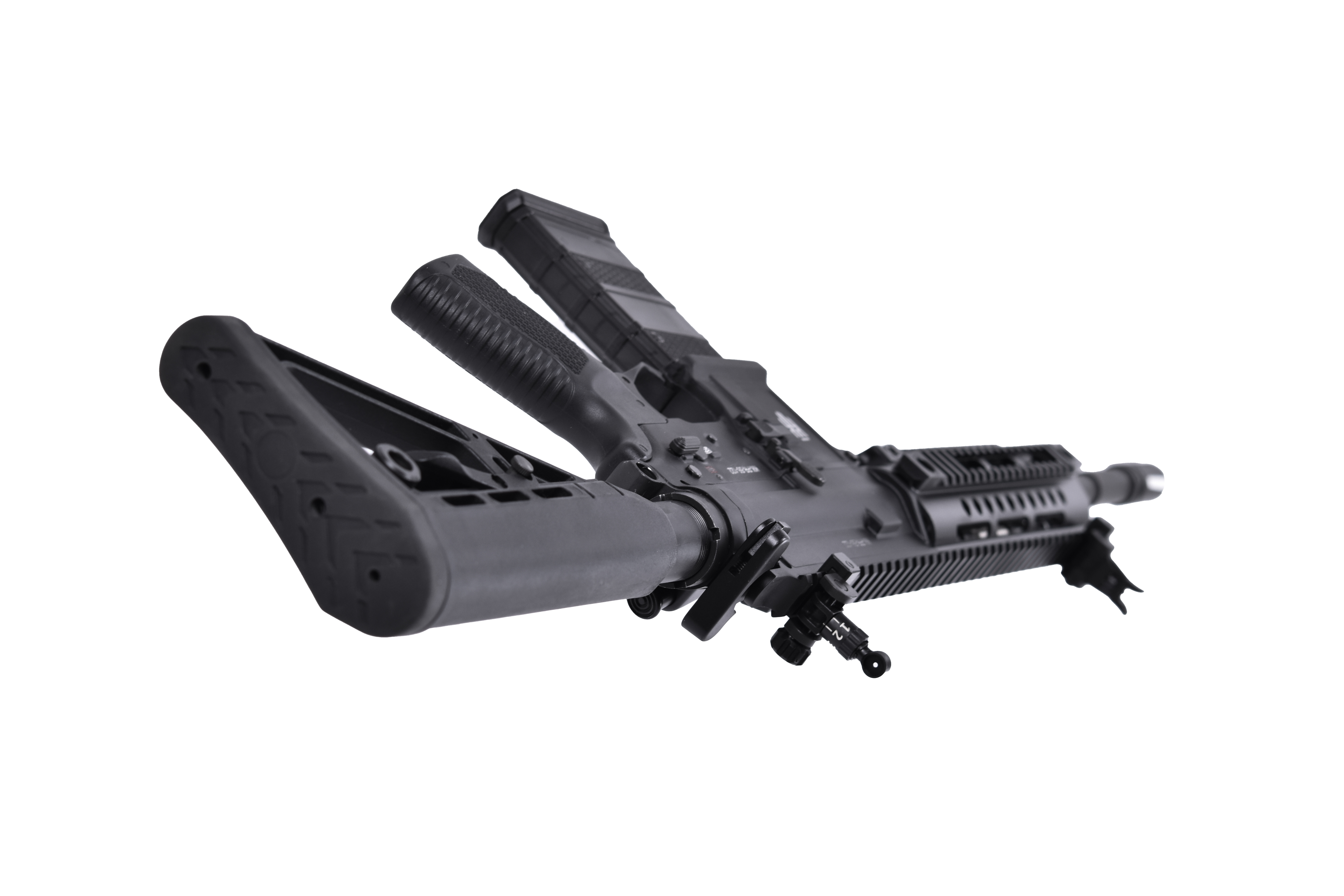

6 Position Telescopic Adjustable Stock

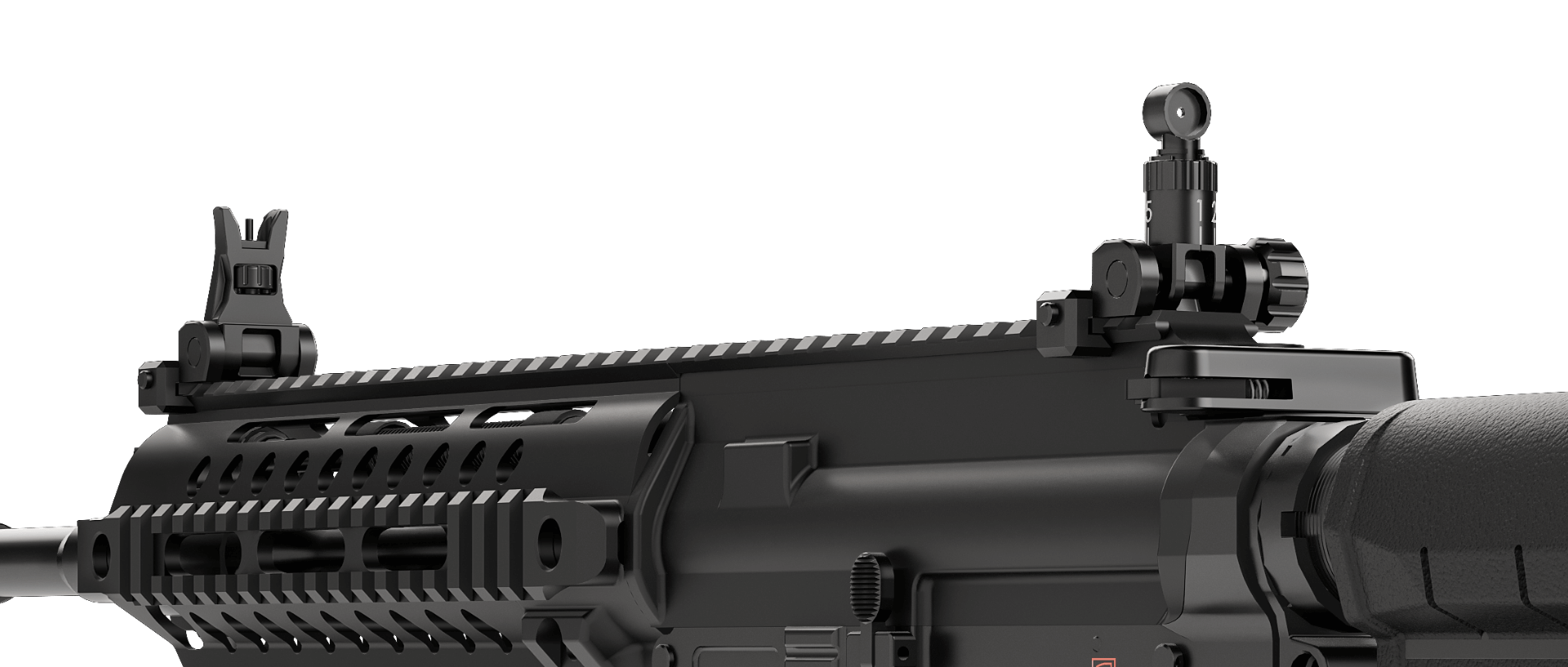

Modular Flip - up Iron Sights
15.000 Rds. Barrel Life

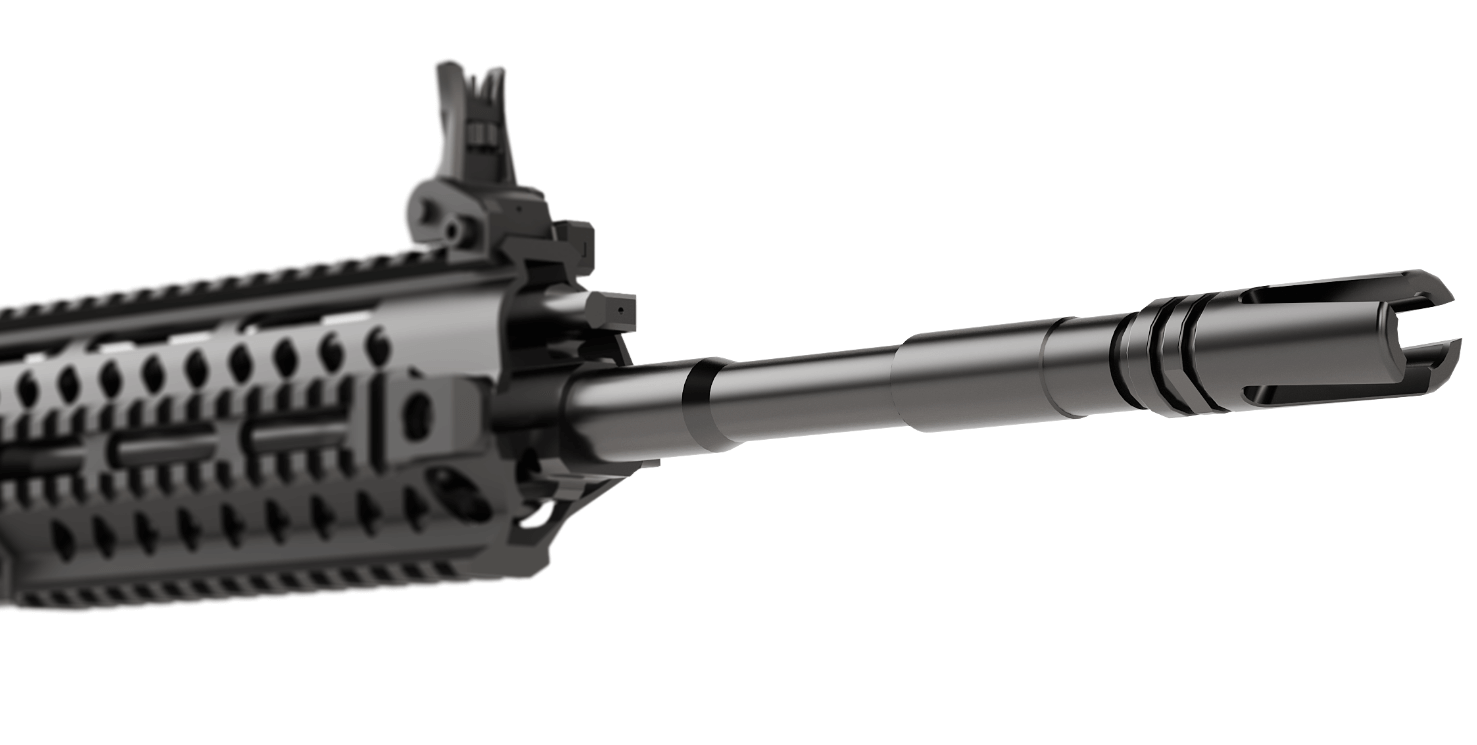

Free Floating Barrel & Handguard 3 Prong Flash Hider

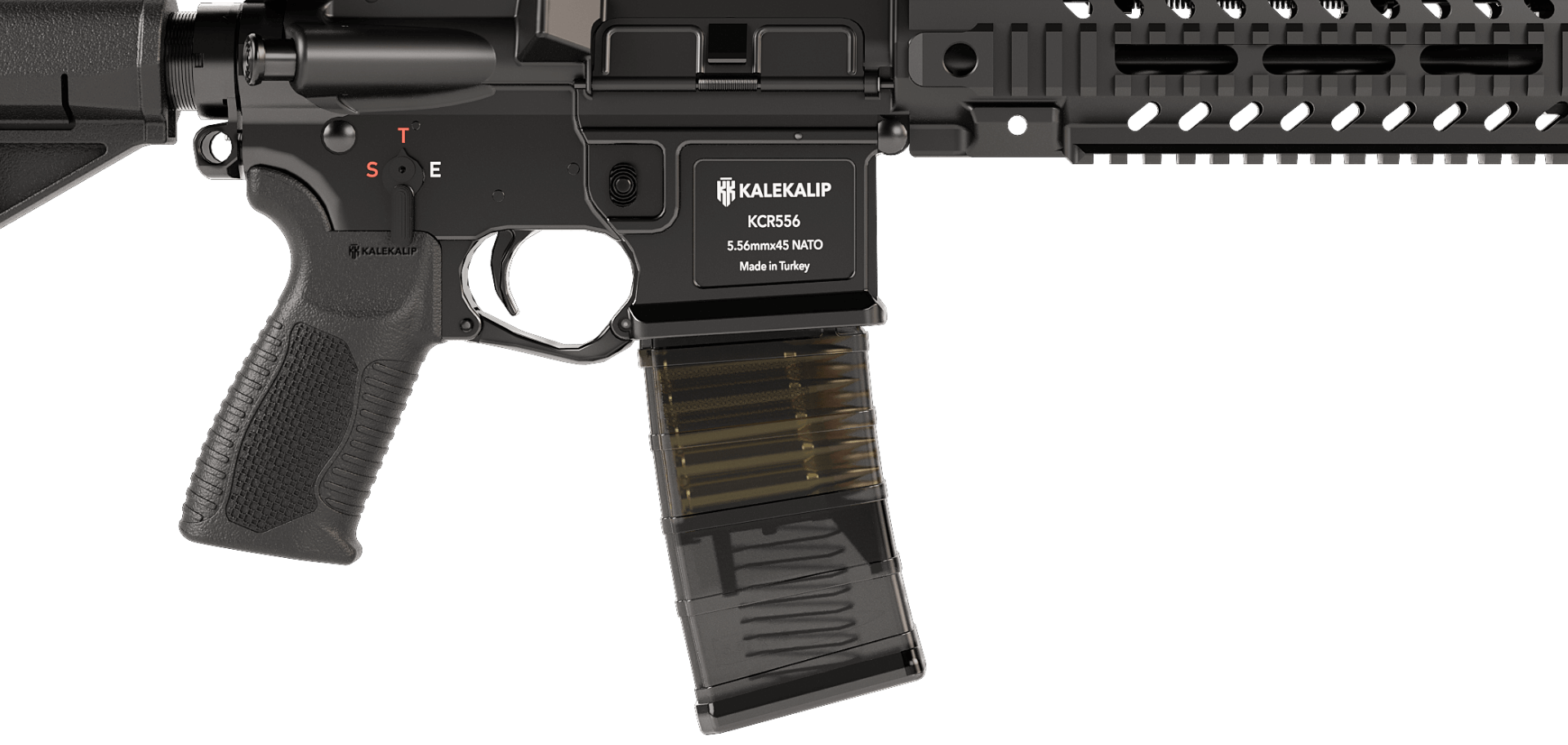

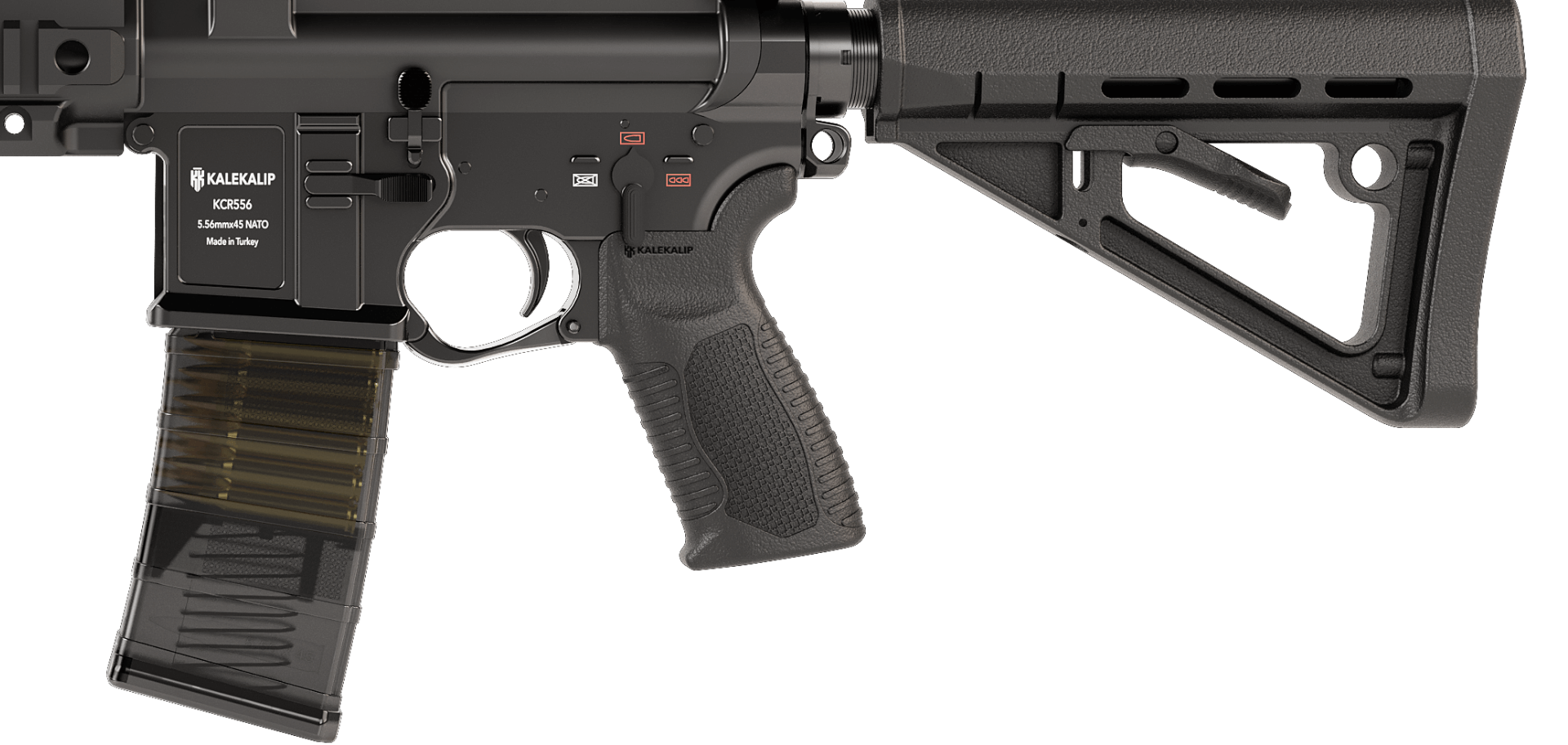

Ambidextrous Weapon Controls
Suitable For Right & Left Hand Shooters with Ambidextrous Weapon Controls
Specs
Calibre
5,56mm x 45 NATO
Firing Mode
Safe / Semi / Full Automatic
Maximum Length (Stock Extended)
930 mm
Minimum Length (Stock Collapsed)
850 mm
Overall Height (w/o Mechanical Sights)
185 mm
Weight (w/o Magazine)
3.450 g
Barrel Length
16” - 406,4 mm
Barrel Twist Rate
1:7” - 1:178 mm 6 grooves right hand twist
Flash Hider
3 Prong
Sight Radius
360 mm
Magazine Type
STANAG Box Type Composite
Magazine Capacity
20 Rds, 30 Rds.
Muzzle Thread
½-28 UNEF - A2
Trigger Pull Weight
25 - 40 N
Rate of Fire
750 - 950 rpm
Velocity
890 m/s
Effective Range
500 m
0%
Features

STANAG 4694/ M1913 Picatinny rails on the 4 sides of the handguard / MLOK

Upper Receiver with STANAG 4694/ M1913 Picatinny rails.

Free floating barrel & handguard

Modular flip - up iron sights

5 position telescopic adjustable stock

Various Cerakote® color options are available

15.000 Rds. barrel life

MIL Spec / Aerospace Grade Al-7075 (7050) Forged Receivers and Handguard

MIL Spec 11595 Cold hammer forged barrel, hard chrome plated ID, manganese phosphate coated OD and polished chamber

Advanced short stroke gas piston system

Suitable for right & left hand shooters with ambidextrous weapon
controls

Cold hammer forged barrel with hard chrome plated ID, manganese phosphate coated OD and polished chamber
